Sta-Kon 18RA-251T

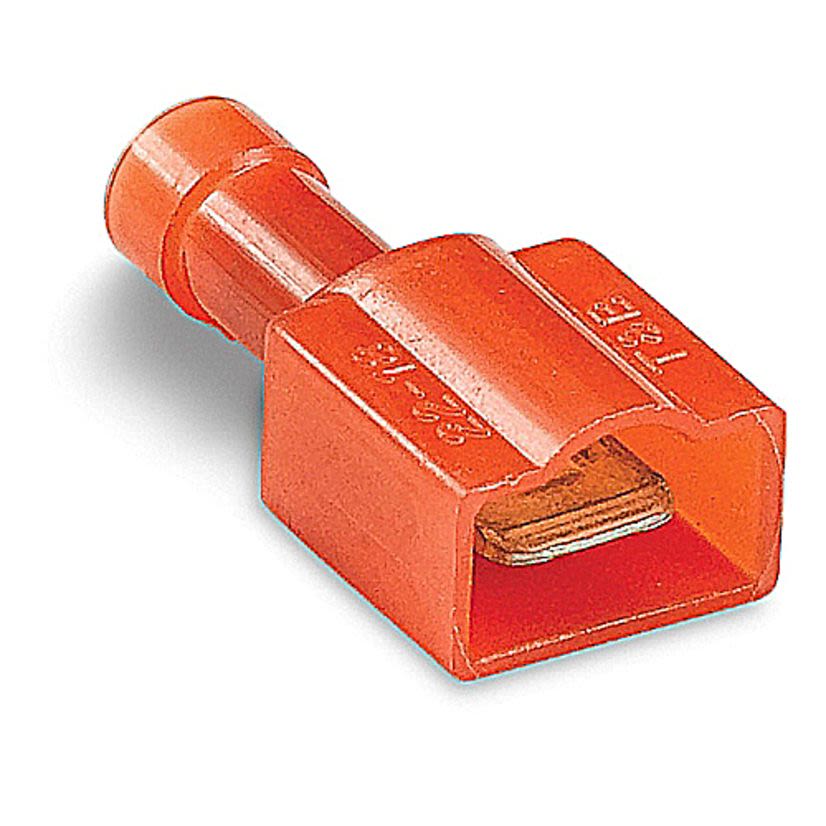

Sta-Kon 18RA-251T 250 Insulated Male Tab, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass/Copper, Red
Sta-Kon 18RA-251T
Sta-Kon 18RA-251T 250 Insulated Male Tab, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass/Copper, RedInventory Not Available
BrandSta-Kon
MFG #18RA-251T
Werner Part #63604
UPC786210869766
Inventory Not Available
BrandSta-Kon
MFG #18RA-251T
Werner Part #63604
UPC786210869766
Product Description
Sta-Kon Male Tab, Insulated, Series: 250, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 300 V AC, 0.03 in THK Stock, 0.17 in Dia Maximum Nylon Insulation, 105 deg C, Brass/Copper, Red, Tin Electro-Plated, 0.95 in L x 0.45 in W
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam
ColorRed
Conductor size22 to 18 AWG
Country of OriginUS
Dimensions1.13 in L x 0.45 in W
FinishElectro Plated Tin
ManufacturerABB
MaterialBrass
Series250
Tab Size0.25 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
TypeInsulated
Type / StyleInsulated
Voltage Rating300 V AC
Features
- Brazed seam serrated barrel provides maximum tensile strength
Specifications
0.17 in Max Insulation, 0.03 in Stock THK
