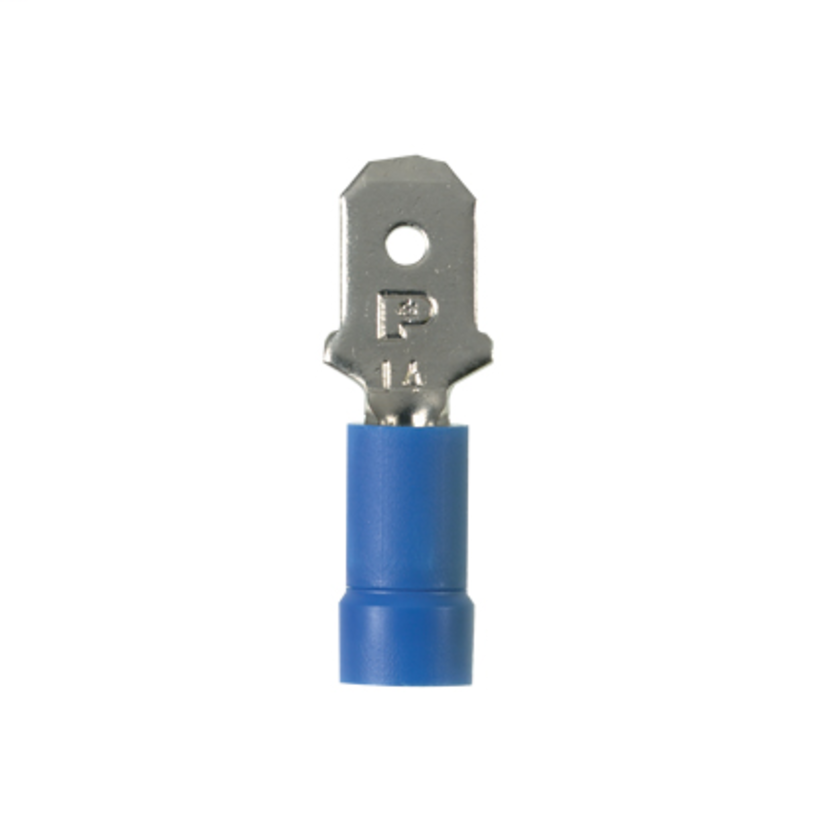

Panduit DV14-250MB-C
Panduit Pan-Term DV14-250MB-C DV-MB Barrel Insulated Loose Piece Vibration-Resistant Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry/Insulation Support Barrel, Copper, Blue
Panduit DV14-250MB-C
Panduit Pan-Term DV14-250MB-C DV-MB Barrel Insulated Loose Piece Vibration-Resistant Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry/Insulation Support Barrel, Copper, BlueOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Panduit Pan-Term Disconnect, Barrel Insulated Loose Piece Vibration-Resistant, Series: DV-MB, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry/Insulation Support Barrel, Male Terminal, 600 V AC, Specifications: 0.18 in Dia Vinyl Insulation, 9/32 in L Wire Strip, 221 deg F, Copper, Blue, Nickel Plated, 0.96 in L x 0.25 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeButted Seam/Funnel Entry/Insulation Support
ColorBlue
Conductor size16 to 14 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions0.96 in L x 0.25 in W
FinishNickel Plated
ManufacturerPanduit
MaterialCopper
SeriesDV-MB
Tab Size0.25 in W x 0.032 in THK
Temperature Rating221 deg F
Terminal TypeMale
TypeBarrel Insulated Loose Piece Vibration-Resistant
Type / StyleLoose Piece Vibration Resistant
Voltage Rating600 V AC
Documents
Features
- Insulation support helps to prevent wire damage in bending applications
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Vinyl barrel insulated
Specifications
0.18 in Dia Vinyl Insulation, 9/32 in L Wire Strip
