Panduit DNF18-250FIMB-L

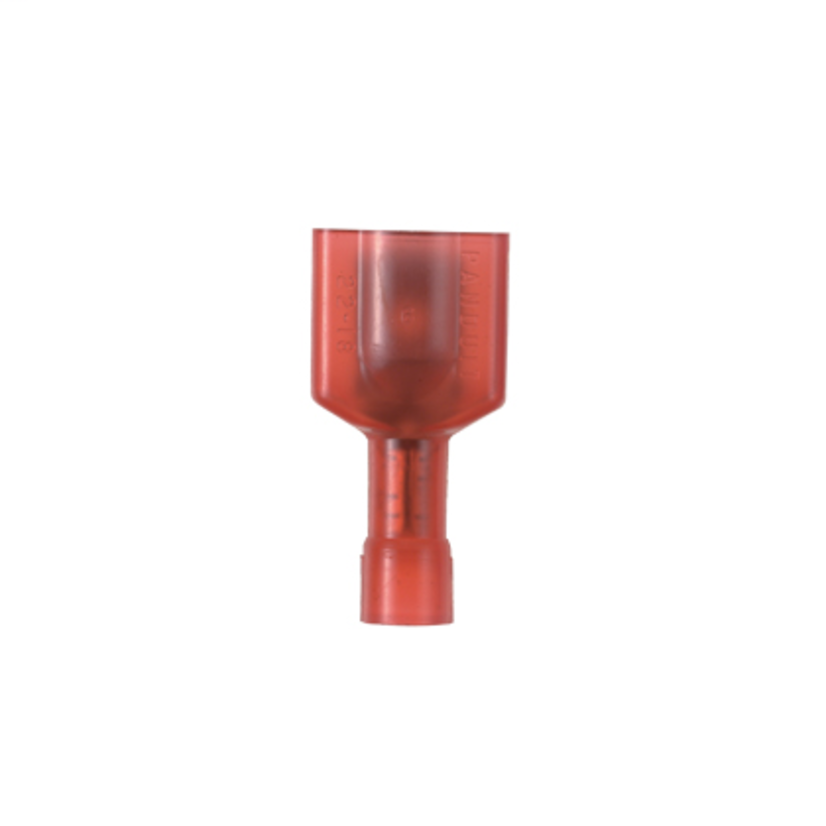

Panduit Pan-Term DNF18-250FIMB-L DNF-FIMB Barrel Insulated Loose Piece Vibration-Resistant Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Brass, Red
Panduit DNF18-250FIMB-L
Panduit Pan-Term DNF18-250FIMB-L DNF-FIMB Barrel Insulated Loose Piece Vibration-Resistant Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Brass, RedOut of Stockmore info
|
BrandPanduit
MFG #DNF18-250FIMB-L
Werner Part #1093523
UPC074983824199
Out of Stockmore info
|
BrandPanduit
MFG #DNF18-250FIMB-L
Werner Part #1093523
UPC074983824199
Product Description
Panduit Pan-Term Disconnect, Barrel Insulated Loose Piece Vibration-Resistant, Series: DNF-FIMB, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Male Terminal, 600 V AC, Specifications: 0.136 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration, 221 deg F, Brass, Red, Nickel Plated, 0.91 in L x 0.45 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeButted Seam/Standard
ColorRed
Conductor size22 to 18 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions0.91 in L x 0.45 in W
FinishNickel Plated
ManufacturerPanduit
MaterialBrass
SeriesDNF-FIMB
Tab Size0.25 in W x 0.032 in THK
Temperature Rating221 deg F
Terminal TypeMale
TypeBarrel Insulated Loose Piece Vibration-Resistant
Type / StyleLoose Piece Vibration Resistant
Voltage Rating600 V AC
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
0.136 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration
