Panduit PV14-10F-C

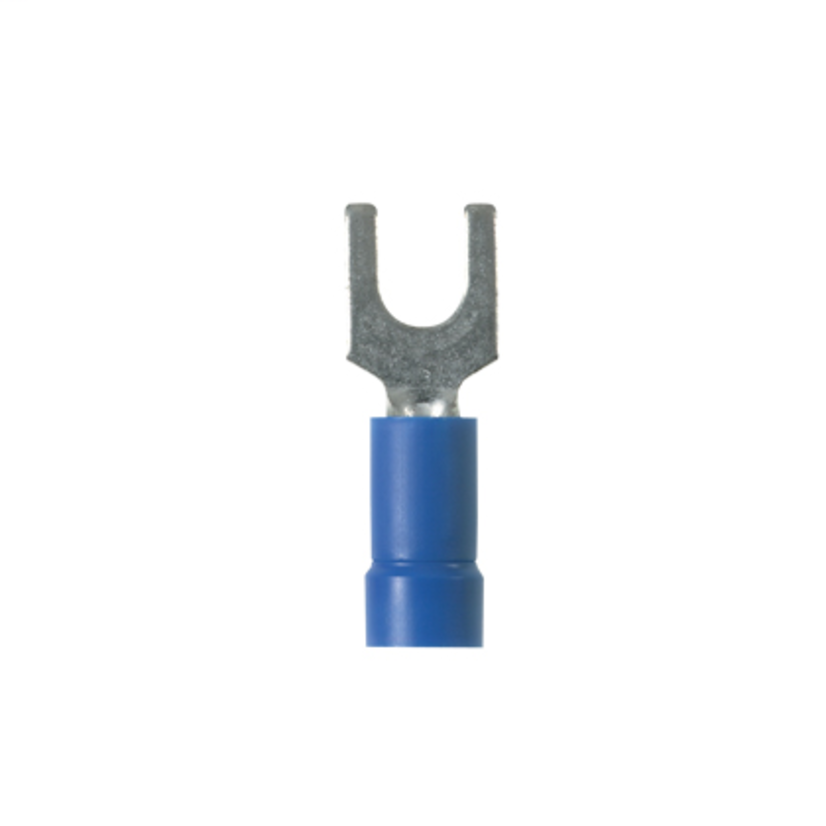

Panduit Pan-Term PV14-10F-C Type PV-F Loose Piece Fork Terminal, 16 to 14 AWG Conductor, 0.92 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Blue
Panduit PV14-10F-C
Panduit Pan-Term PV14-10F-C Type PV-F Loose Piece Fork Terminal, 16 to 14 AWG Conductor, 0.92 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, BlueOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Panduit Pan-Term Fork Terminal, Type PV-F Loose Piece, Stranded Copper Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.92 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Fork Tongue, 0.34 in W x 0.03 in THK Tongue, 600 V AC, 0.17 in Dia Vinyl Insulation, 0.24 in Clearance, 5/16 in Mounting Hole Size, 7/32 in L Wire Strip, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Internal Serration
ColorBlue
Conductor size16 to 14 AWG
Conductor TypeStranded Copper
Country of OriginMX
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesPV-F
Stud Size#10
Temperature Rating221 deg F
Tongue Size0.34 in W x 0.03 in THK
Tongue TypeFork
TypeType PV-F Loose Piece
Type / StyleLoose Piece
Voltage Rating600 V AC
Documents
Features
- Locks in place for secure connection
- Fork design provides for fast and easy installations, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel serrations assure good wire contact and maximum tensile strength
Specifications
0.17 in Dia Vinyl Insulation, 0.24 in Clearance, 5/16 in Mounting Hole Size, 7/32 in L Wire Strip, Fork Shape Enclosure
