Panduit PV10-8F-L

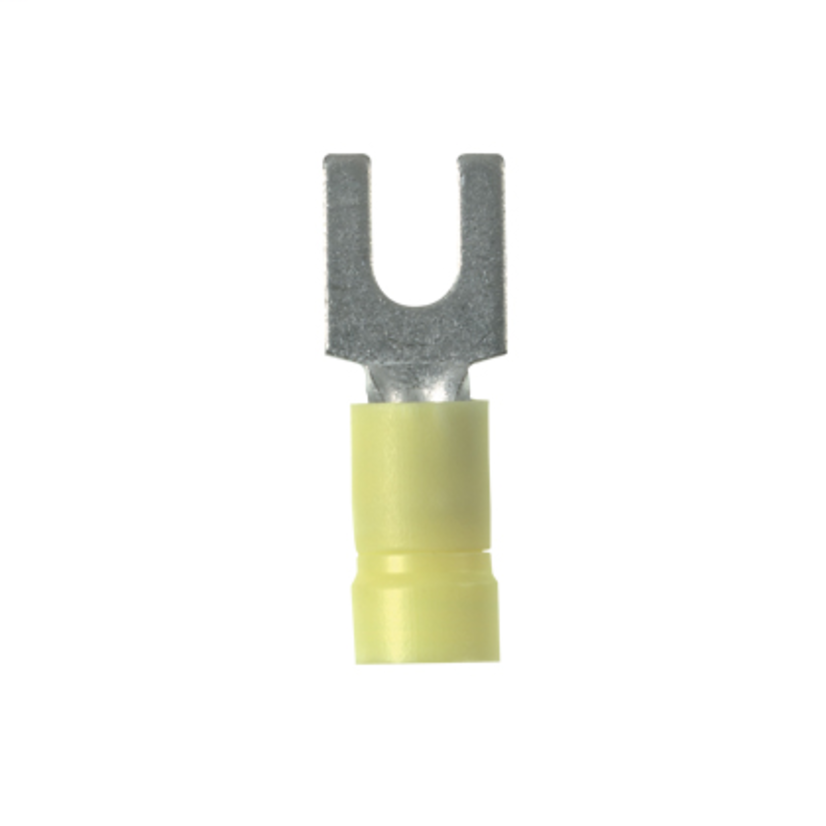

Panduit Pan-Term PV10-8F-L Type PV-F Loose Piece Fork Terminal, 14 to 10 AWG Conductor, 1.04 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Yellow
Panduit PV10-8F-L
Panduit Pan-Term PV10-8F-L Type PV-F Loose Piece Fork Terminal, 14 to 10 AWG Conductor, 1.04 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, YellowIn Stock: 1450more info
|
In Stock: 1450more info
|
Product Description
Panduit Pan-Term Fork Terminal, Type PV-F Loose Piece, Stranded Copper Conductor, 14 to 10 AWG Conductor, #8 Stud, 1.04 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Internal Serration
ColorYellow
Conductor size14 to 10 AWG
Conductor TypeStranded Copper
Country of OriginMX
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Stud Size#8
Temperature Rating221 deg F
Tongue Size0.37 in W x 0.04 in THK
Tongue TypeFork
TypeType PV-F Loose Piece
Type / StyleLoose Piece
Voltage Rating600 V
Documents
Features
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration application
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel serrations assure good wire contact and maximum tensile strength
Specifications
0.225 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Fork Shape Enclosure
