Panduit DNFR14206FIB-KD

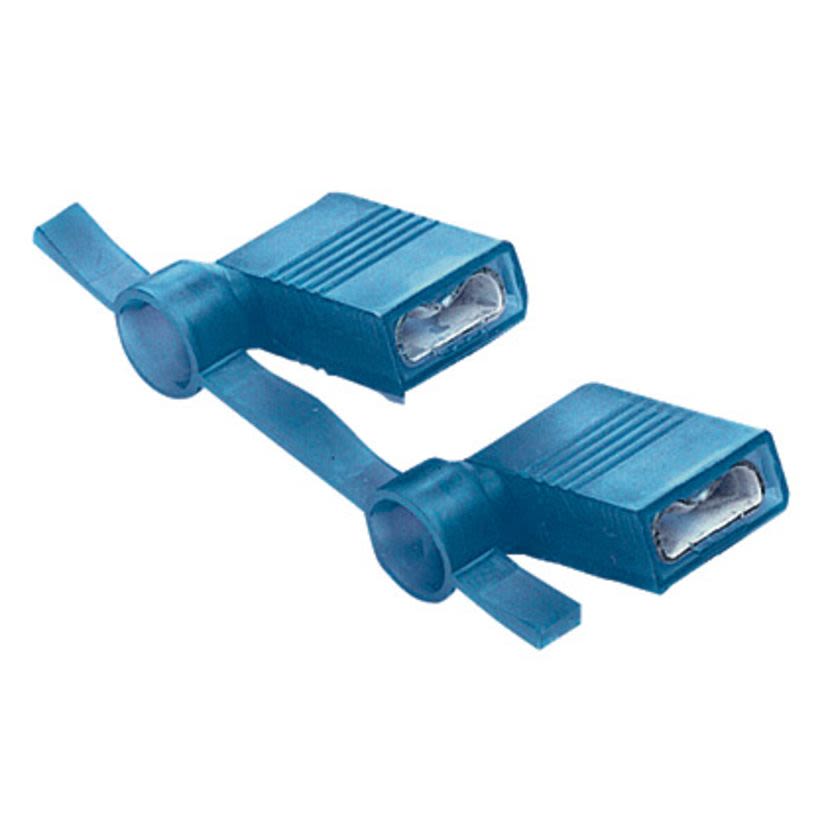

Panduit Reel Smart DNFR14206FIB-KD Type DNFR-FIB Reel Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully Insulated
Panduit DNFR14206FIB-KD
Panduit Reel Smart DNFR14206FIB-KD Type DNFR-FIB Reel Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Fully InsulatedOut of Stockmore info
|
BrandPanduit
MFG #DNFR14206FIB-KD
Werner Part #2380325
UPC074983789474
Out of Stockmore info
|
BrandPanduit
MFG #DNFR14206FIB-KD
Werner Part #2380325
UPC074983789474
Product Description
Panduit Reel Smart Female Disconnect, Type DNFR-FIB Reel Vibration-Resistant, Stranded Conductor, 14 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 V, Specifications: 0.178 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Blue, Tin Plated, 0.57 in L x 0.37 in W x 0.6 in H Dimensions, Insulated: Fully Insulated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeButted Seam/Funnel Entry
ColorBlue
Conductor size14 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions0.57 in L x 0.37 in W x 0.6 in H
FinishTin Plated
InsulatedFully Insulated
ManufacturerPanduit
MaterialBrass
SeriesDNFR-FIB
Tab Size0.187 to 0.205 in W x 0.02 in THK
Temperature Rating221 deg F
Terminal TypeCrimp
TypeType DNFR-FIB Reel Vibration-Resistant
Type / StyleVibration Resistant
Voltage Rating600 V
Documents
Applications
For making quick and repeatable interconnections
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
0.178 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
