Panduit DNF14-110-C

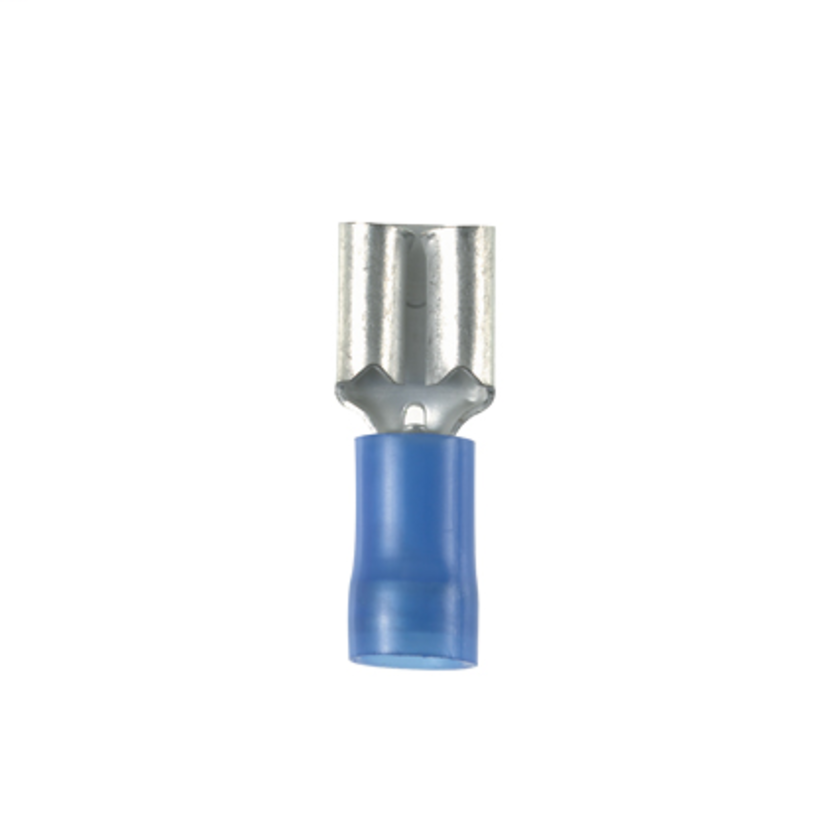

Panduit Pan-Term DNF14-110-C Type DNF Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.11 in W x 0.032 in THK Tab, Funnel Entry/Serrated/Sleeved Barrel, Brass, Blue, Fully Insulated
Panduit DNF14-110-C
Panduit Pan-Term DNF14-110-C Type DNF Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.11 in W x 0.032 in THK Tab, Funnel Entry/Serrated/Sleeved Barrel, Brass, Blue, Fully InsulatedIn Stock: 1044more info
|
BrandPanduit
MFG #DNF14-110-C
Werner Part #53789
UPC074983826506
In Stock: 1044more info
|
BrandPanduit
MFG #DNF14-110-C
Werner Part #53789
UPC074983826506
Product Description
Panduit Pan-Term Female Disconnect, Type DNF Loose Piece Vibration-Resistant, Stranded Conductor, 14 AWG Conductor, 0.11 in W x 0.032 in THK Tab, Funnel Entry/Serrated/Sleeved Barrel, Crimp Terminal, 300 V, Specifications: 0.162 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, 194 deg F, Brass, Blue, Tin Plated, 0.75 in L x 0.15 in W x 0.08 in H Dimensions, Insulated: Fully Insulated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeFunnel Entry/Serrated/Sleeved
ColorBlue
Conductor size14 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions0.75 in L x 0.15 in W x 0.08 in H
FinishTin Plated
InsulatedFully Insulated
ManufacturerPanduit
MaterialBrass
SeriesDNF
Tab Size0.11 in W x 0.032 in THK
Temperature Rating194 deg F
Terminal TypeCrimp
TypeType DNF Loose Piece Vibration-Resistant
Type / StyleLoose Piece Vibration-Resistant
Voltage Rating300 V
Documents
Applications
Making Quick and Repeatable Interconnection Applications
Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Maximum insulation temperature 194 deg F
- Coupler, male and female parts sold separately
- UL flammability UL 94V-2/HB, maximum insulation temperature 221 deg F (105 deg C)
- UL and CSA rated up to 600 VAC per UL 310
Specifications
0.162 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
