Panduit D-250A-C

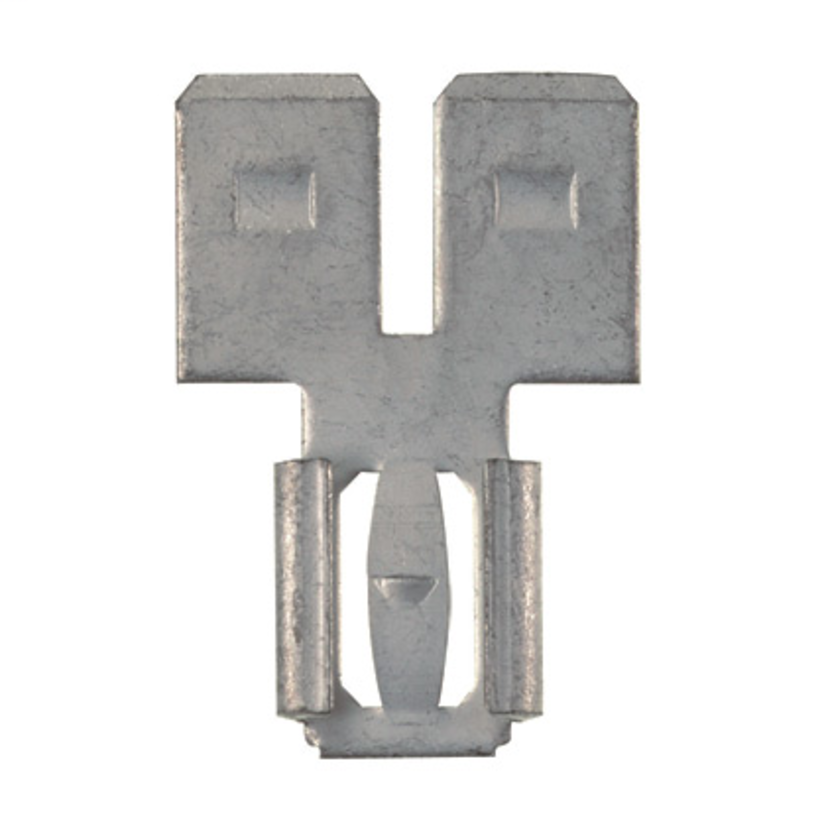

Panduit Pan-Term D-250A-C Type D-A Loose Piece Non-Insulated Vibration-Resistant Disconnect Adapter, 2 kV AC, Brass
Panduit D-250A-C
Panduit Pan-Term D-250A-C Type D-A Loose Piece Non-Insulated Vibration-Resistant Disconnect Adapter, 2 kV AC, BrassIn Stock: 300more info
|
BrandPanduit
MFG #D-250A-C
Werner Part #53769
UPC074983827503
In Stock: 300more info
|
BrandPanduit
MFG #D-250A-C
Werner Part #53769
UPC074983827503
Product Description
Panduit Pan-Term Disconnect Adapter, Type D-A Loose Piece Non-Insulated Vibration-Resistant, 2 kV AC, 0.25 in W x 0.032 in THK Terminal, Brass, 0.82 in L x 0.57 in W Dimensions
Attributes
Documents
Features
Attributes
Country of OriginUS
Dimensions0.82 in L x 0.57 in W
FinishTinned
ManufacturerPanduit
MaterialBrass
Package Height1.9 IN
Package Length4.3 in
Package Volume17915.9 cu-in
Package Weight0.36 lb
Package Width1.9 in
SeriesD-A Series
Temperature Rating266 Degrees Fahrenheit (130 Degrees Celsius)
TypeType D-A Loose Piece Non-Insulated Vibration-Resistant
Type / StyleLoose Piece Disconnects
Voltage Rating2 kV AC
Documents
Features
- Couples two female disconnects to one male disconnect
- Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
- The vibration-resistant disconnect adapter in metallic brass couples two female tabs and one male tab all sized at 0.25 x 0.032 in
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- The vibration-resistant disconnect adapter in metallic brass couples two female tabs and one male tab all sized at 0.25 x 0.032 in
- Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Maximum recommended operating temperature 302 deg F
