Panduit BSV18X-LY

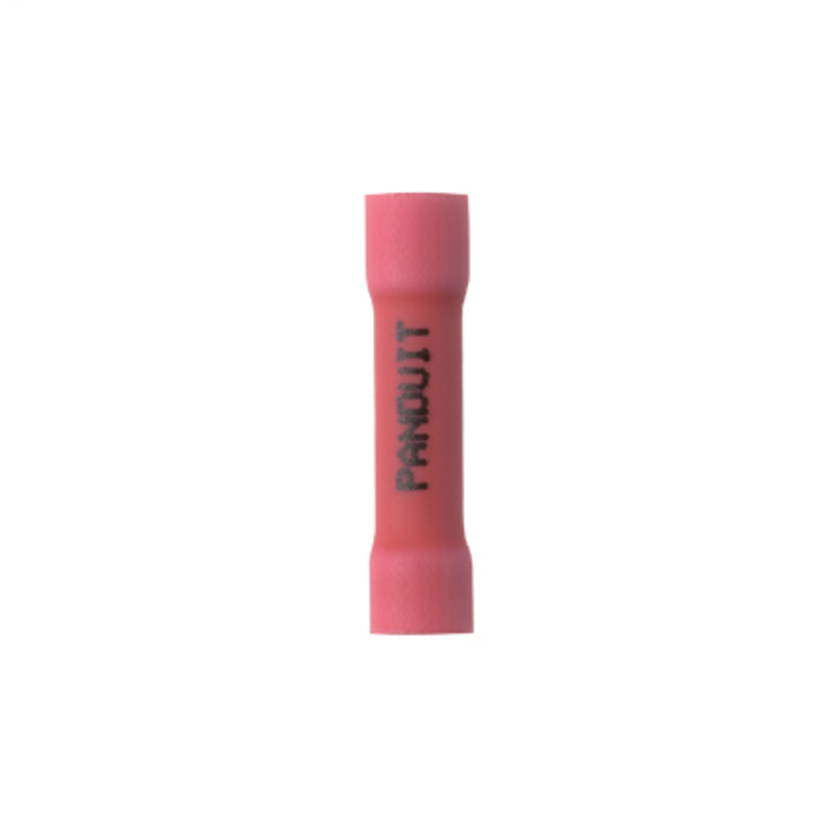

Panduit Pan-Term BSV18X-LY Expanded Loose Piece Butt Splice, 22 to 18 AWG Conductor, 1.03 in L, Brazed Seam/Expanded Barrel, Copper/Vinyl, Red
Panduit BSV18X-LY
Panduit Pan-Term BSV18X-LY Expanded Loose Piece Butt Splice, 22 to 18 AWG Conductor, 1.03 in L, Brazed Seam/Expanded Barrel, Copper/Vinyl, RedIn Stock: 1700more info
|
BrandPanduit
MFG #BSV18X-LY
Werner Part #3815582
UPC074983685530
In Stock: 1700more info
|
BrandPanduit
MFG #BSV18X-LY
Werner Part #3815582
UPC074983685530
Product Description
Panduit Pan-Term Butt Splice, Expanded Loose Piece, Series: BSV, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1.03 in Length, Brazed Seam/Expanded Barrel, 600 V AC, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation, 221 deg F, Copper/Vinyl, Red, Tin Plated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Expanded
ColorRed
Conductor size22 to 18 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
FinishTin Plated
ManufacturerPanduit
MaterialCopper/Vinyl
SeriesBSV
Temperature Rating221 deg F
TypeExpanded Loose Piece
Type / StyleLoose Piece
Voltage Rating600 V AC
Documents
Features
- The types YSE and YSE-H INSULINKS are high quality nylon insulated butt splices designed for splicing aircraft and commercial flexible cable
- Manufactured from Tin plated
- Seamless electrolytic copper tubing with integral barrel/insulation grip
- Provides maximum conductivity and tensile strength
- Plus excellent cable support and strain relief
- Split heavy wall insulation grip
- Provides stronger insulation grip and strain relief
- Smooth funnel entry
- Provides easy wire insertion
- Transparent nylon insulation
- Permits easy wire inspection
- Installation tool - Y10D
- Ratchet- MR8-33S-1 tool
- Internal wire stop assures proper insertion length for a quality connection
- Brazed seem protects the terminal barrel from splitting during the crimp process
- Expanded wire entry accomodates wires with larger insulation thickness
Specifications
5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation
