Panduit BSN18-C

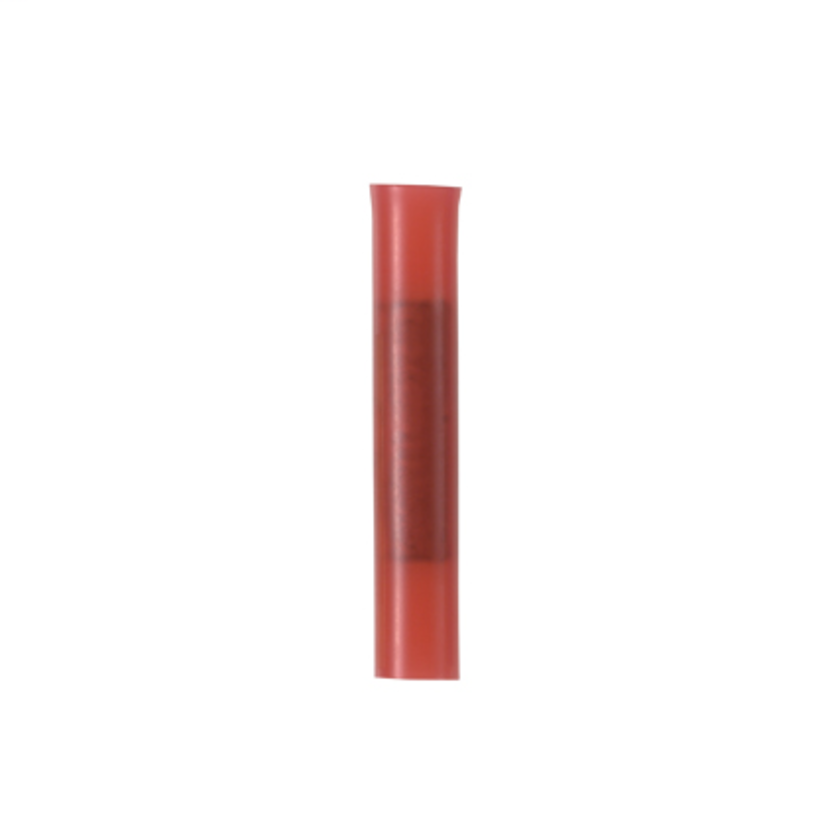

Panduit Pan-Term BSN18-C Loose Piece Standard Butt Splice, 22 to 18 AWG Conductor, 1.15 in L, Brazed Seam/Standard Barrel, Copper/Nylon, Red
Panduit BSN18-C
Panduit Pan-Term BSN18-C Loose Piece Standard Butt Splice, 22 to 18 AWG Conductor, 1.15 in L, Brazed Seam/Standard Barrel, Copper/Nylon, RedIn Stock: 3000more info
|
In Stock: 3000more info
|
Product Description
Panduit Pan-Term Butt Splice, Loose Piece Standard, Series: BSN, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1.15 in Length, Brazed Seam/Standard Barrel, 0.13 in ID x 0.2 in OD Barrel, 600 V AC, Specifications: 9/32 in L Wire Strip, 0.115 in Dia Maximum Nylon Insulation, 221 deg F, Copper/Nylon, Red, Tin Plated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.13 in ID x 0.2 in OD
Barrel TypeBrazed Seam/Standard
ColorRed
Conductor size22 to 18 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
FinishTin Plated
ManufacturerPanduit
MaterialCopper/Nylon
SeriesBSN
Temperature Rating221 deg F
TypeLoose Piece Standard
Type / StyleLoose Piece
Voltage Rating600 V AC
Documents
Applications
For limited space applications
Features
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Internal wire stop assures proper length of insertion into terminal barrel
- Internal wire stop assures proper insertion length for a quality connection
- Brazed seem protects the terminal barrel from splitting during the crimp process
Specifications
9/32 in L Wire Strip, 0.115 in Dia Maximum Nylon Insulation
