IDEAL 83-8001

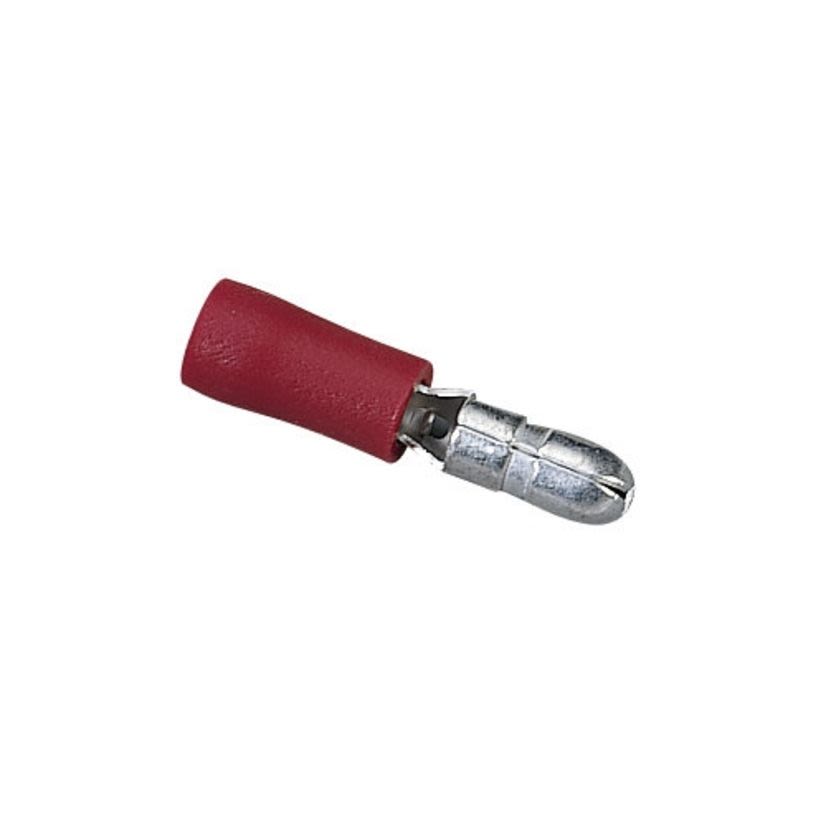

IDEAL 83-8001 Insulated Vinyl Bullet Disconnect, 22 to 18 AWG, 0.157 in Dia Bullet, Brass, Red
IDEAL 83-8001
IDEAL 83-8001 Insulated Vinyl Bullet Disconnect, 22 to 18 AWG, 0.157 in Dia Bullet, Brass, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
IDEAL Bullet Disconnect, Insulated Vinyl, 22 to 18 AWG Conductor, 0.157 in Diameter Bullet, 0.846 in Overall Length, 300 V AC, Specifications: 0.15 in Dia Max Insulation, 0.335 in L Bullet, 75 deg C, Brass, Tin Plated, Red, 0.846 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorRed
Conductor size22 to 18 AWG
Country of OriginTW
Dimensions0.846 in L
FinishTin Plated
ManufacturerIdeal Industries
MaterialBrass
Overall Length0.846 in
Package TypeEACH
Temperature Rating75 deg C
TypeInsulated Vinyl
Type / StyleInsulated Vinyl
Voltage Rating300 V AC
Features
- Butted seam-construction prevents splitting under maximum pressure
- Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
- Tin-plated brass construction for corrosion resistance
- Shouldered barrel insulation quickly positions terminal for proper crimping
- Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Specifications
0.15 in Dia Max Insulation, 0.335 in L Bullet
