Blackburn ICS73-1

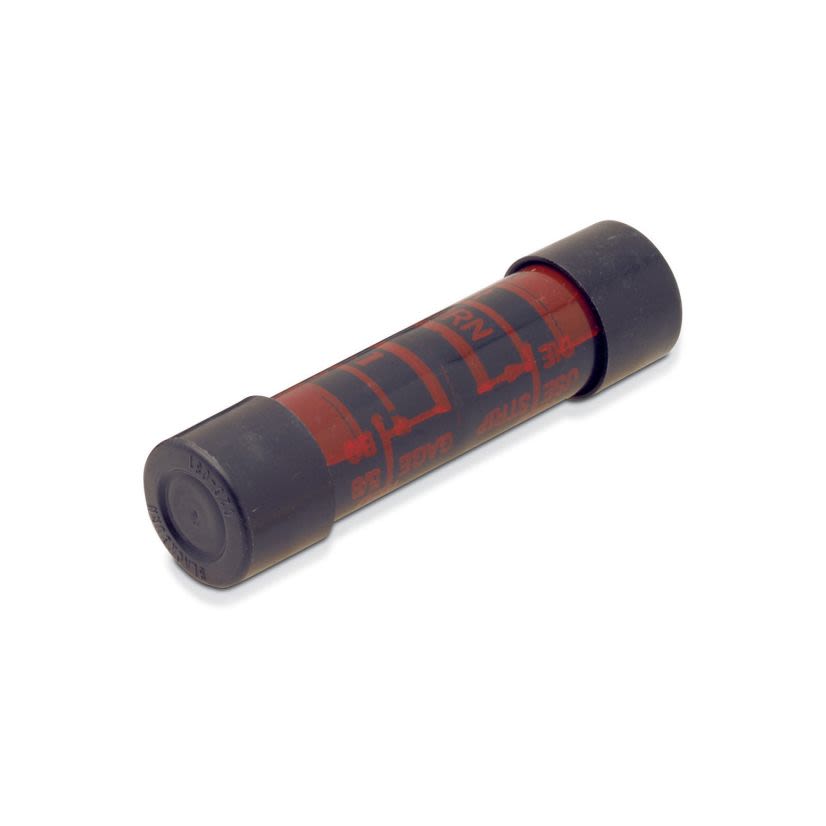

Blackburn ICS73-1 Insulated Service Entrance Splice, 2 to 1 AWG ACSR/Stranded Conductor, Die Code: 5/8, 2-25/32 in L, Aluminum
Blackburn ICS73-1
Blackburn ICS73-1 Insulated Service Entrance Splice, 2 to 1 AWG ACSR/Stranded Conductor, Die Code: 5/8, 2-25/32 in L, AluminumNon-stock product. Available to order - lead time may vary.
BrandBlackburn
MFG #ICS73-1
Werner Part #17738
UPC783786102457
Non-stock product. Available to order - lead time may vary.
BrandBlackburn
MFG #ICS73-1
Werner Part #17738
UPC783786102457
Product Description
Blackburn Service Entrance Splice, Insulated, Series: ICS, ACSR/Stranded Conductor, 2 to 1 AWG Conductor, Die Code: 5/8, 2-25/32 in Length, Crimp/Compression Connector, Specifications: 2-Conductor, 0.268 to 0.328 in Dia End A and End B, Aluminum, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorRed
Conductor size2 to 1 AWG
Conductor TypeACSR/Stranded
Country of OriginMX
Die Code5/8
ManufacturerABB
MaterialAluminum
Package TypeEACH
SeriesICS
TypeInsulated
Type / StyleInsulated
Applications
For standard conductor splice and combination of aluminum to aluminum and aluminum to copper conductors
Features
- Constructed from aluminum for high conductivity
- Solid center barriers and large chamfers for easy cable insertion
- Tough stabilized nylon sleeves resist installing tool pressure and provide reliable 600 VAC insulation
- Prefilled with oxide-inhibitor to prevent oxidation and keep out moisture
- All splices are Color coded and marked with strip lengths, installation die codes and compression locations providing easy identification for easy installation
- Splices have colored end caps to make identification easy
- All seasons environmental conditions
- 2 AWG ACSR, 2 to 1 AWG stranded end A and 2 AWG ACSR, 2 to 1 AWG stranded end B conductor
- 5/8 in die series, U-BG B58CS hydraulic dies, 5/8 (OD58 tool) peach, BG, W-BG, G, TU mechanical dies
- Complies with ANSI C119.4 when properly installed on aluminum-to-aluminum or aluminum-to-copper conductors
Specifications
2-Conductor, 0.268 to 0.328 in Dia End A and End B
