Panduit SBC8-C

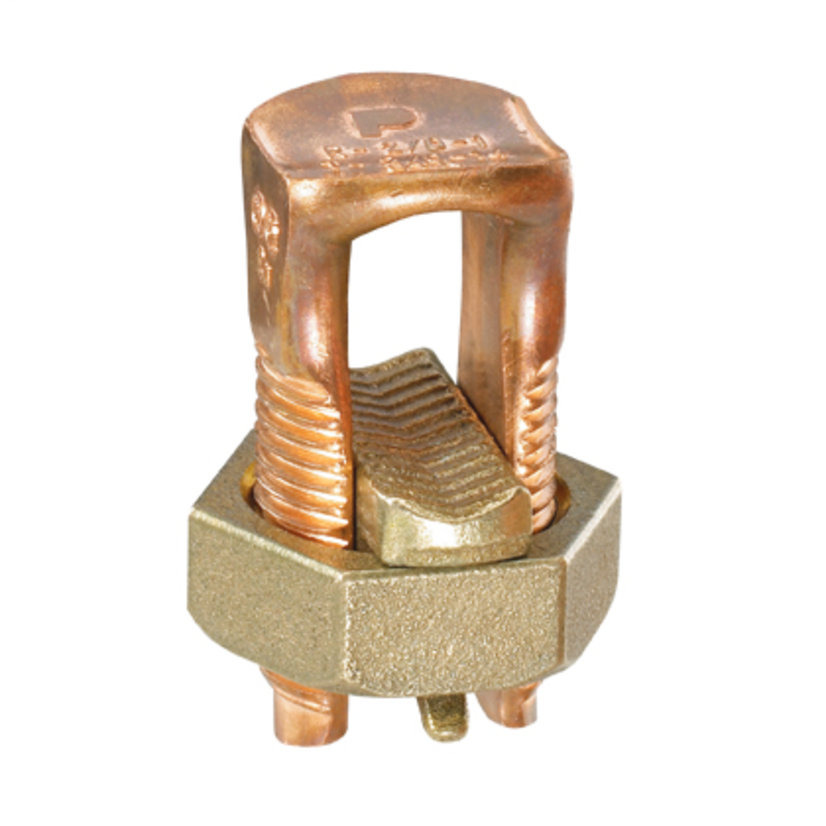

Panduit Pan-Lug SBC8-C Dual Rated Split Bolt Mechanical Connector, 10 to 8 AWG Stranded Copper Conductor, Copper
Panduit SBC8-C
Panduit Pan-Lug SBC8-C Dual Rated Split Bolt Mechanical Connector, 10 to 8 AWG Stranded Copper Conductor, CopperOut of Stockmore info
|
BrandPanduit
MFG #SBC8-C
Werner Part #54837
UPC074983904020
Out of Stockmore info
|
BrandPanduit
MFG #SBC8-C
Werner Part #54837
UPC074983904020
Product Description
Panduit Pan-Lug Split Bolt Mechanical Connector, Dual Rated, Series: SBC, Stranded Copper Conductor, 10 to 8 AWG Conductor, 600 V AC, Specifications: 0.55 in Hex Nut, 16 AWG Stranded Minimum Tap With One Maximum Run, 80 in-lb Tightening Torque, 90 deg C, Copper, Tin Plated, 0.14 in ID x 0.86 in L x 0.39 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
Conductor size10 to 8 AWG
Conductor TypeStranded Copper
Country of OriginBR
Dimensions0.14 in ID x 0.86 in L x 0.39 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesSBC
Temperature Rating90 deg C
TypeDual Rated
Type / StyleMechanical
Voltage Rating600 V AC
Documents
Features
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pullout strength
- Dual rated for use with aluminum to aluminum, aluminum to copper and copper to copper conductor combinations
- Tin-plated to inhibit corrosion and oxidation
- True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Free floating pressure bar separates conductor of dissimilar materials for secure connection on a full range of conductor combinations
- Copper to copper connection
- Mechanical lug split bolt copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements
- The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pullout strength
Specifications
0.55 in Hex Nut, 16 AWG Stranded Minimum Tap With One Maximum Run, 80 in-lb Tightening Torque
