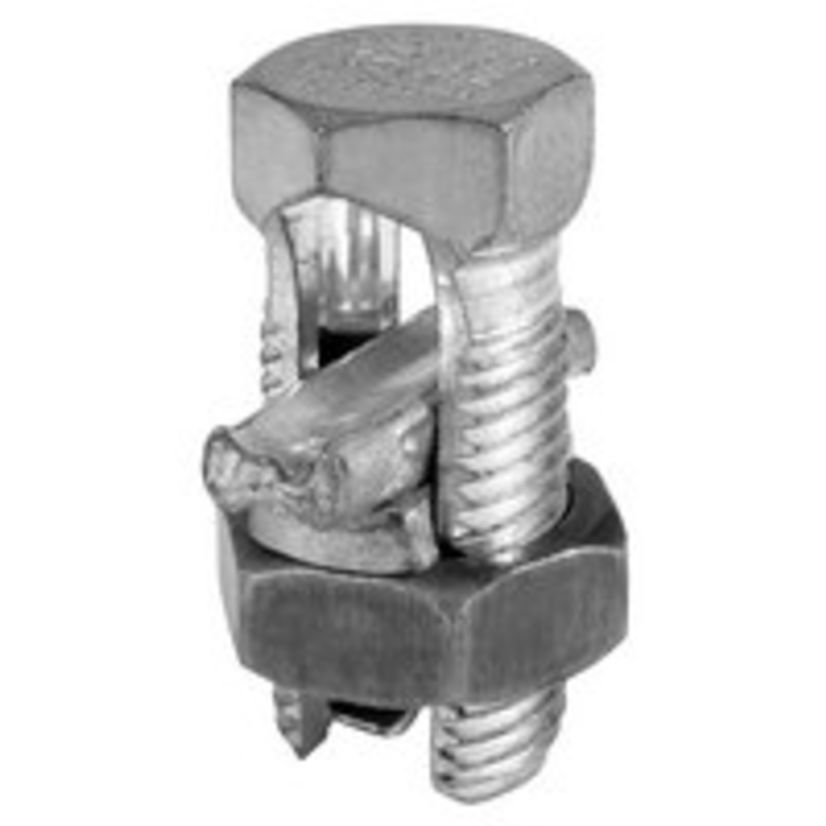

nVent ILSCO SK-4
ILSCO ClearChoice SK-4 Type SK Split Bolt Connector, 10 to 6 AWG, 10 AWG ACSR/Compact/Compressed/Concentric/Solid Copper Conductor, 0.562 x 1.266 in, Copper Alloy
nVent ILSCO SK-4
ILSCO ClearChoice SK-4 Type SK Split Bolt Connector, 10 to 6 AWG, 10 AWG ACSR/Compact/Compressed/Concentric/Solid Copper Conductor, 0.562 x 1.266 in, Copper AlloyIn Stock: 39more info
|
BrandnVent ILSCO
MFG #SK-4
Werner Part #40829
UPC783669819021
In Stock: 39more info
|
BrandnVent ILSCO
MFG #SK-4
Werner Part #40829
UPC783669819021
Product Description
ILSCO ClearChoice Split Bolt Connector, Type SK, ACSR/Compact/Compressed/Concentric/Solid Copper Conductor, 10 to 6 AWG, 10 AWG Conductor, 0.562 x 1.266 in Bolt, 2000 V AC, 0.217 in Split, 0.688 in Hex Nut, 165 in-lb Recommended Torque, 90 deg C, Copper Alloy, Electro-Plated Tin, 1.266 in H x 0.688 in W
Attributes
Documents
Applications
Features
Specifications
Attributes
BABA CompliantYes
Conductor size10 to 6 AWG, 10 AWG
Conductor TypeACSR/Compact/Compressed/Concentric/Solid Copper
Country of OriginUS
Dimensions1.266 in H x 0.688 in W
FinishElectro-Plated Tin
ManufacturerECM Industries
MaterialCopper Alloy
Package TypeEACH
Temperature Rating90 deg C
TypeType SK
Type / StyleType SK
Voltage Rating2000 V AC
Applications
Used in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques, tap connector and splice connector
Features
- Manufactured from high strength copper alloy provides maximum conductivity and high breakage resistance
- Electro-tin plated bolt, nut, spacer and pressure bar provides low contact resistance
- For use with solid, compact, compressed, concentric copper conductors
- Precision tooled threads allows maximum torque to be applied
- For other aluminum applications consult factory
- Provides maximum conductivity and high breakage resistance
- Application versatility
- Proper high voltage spacing and insulation techniques must be used
Specifications
0.217 in Split, 0.688 in Hex Nut, 165 in-lb Recommended Torque
