nVent ILSCO IPC-1/0-2

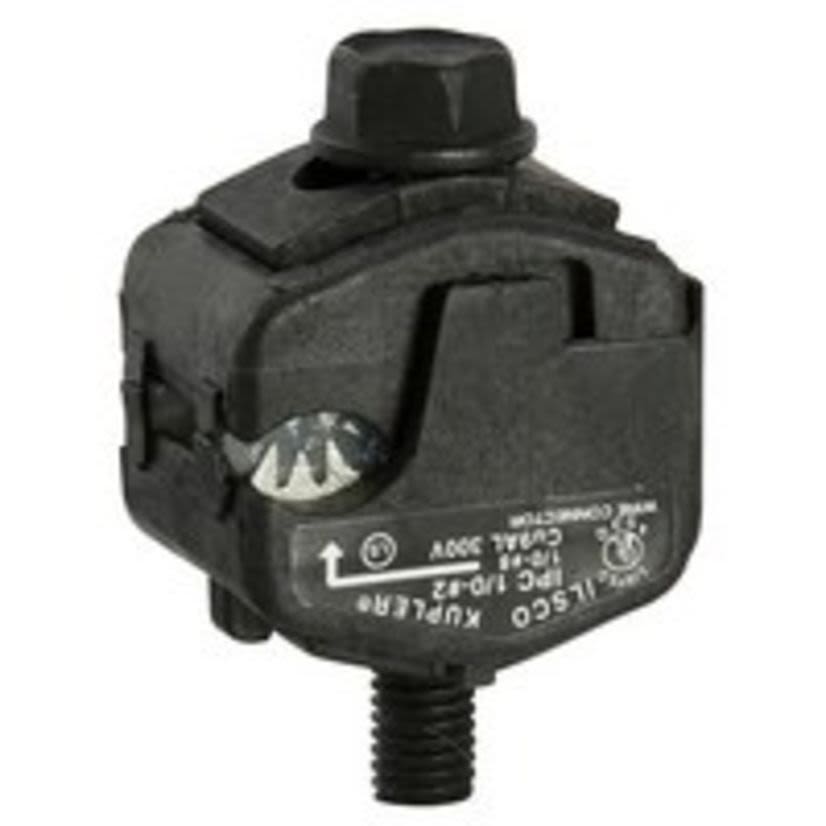

ILSCO KUP-L-Tap IPC-1/0-2 Type IPC Dual Rated Insulation Piercing Connector, 8 to 1/0 AWG Aluminum/Copper Conductor, 1/2 in, Copper
nVent ILSCO IPC-1/0-2
ILSCO KUP-L-Tap IPC-1/0-2 Type IPC Dual Rated Insulation Piercing Connector, 8 to 1/0 AWG Aluminum/Copper Conductor, 1/2 in, CopperNon-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #IPC-1/0-2
Werner Part #3855833
UPC783669532661
Non-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #IPC-1/0-2
Werner Part #3855833
UPC783669532661
Product Description
ILSCO KUP-L-Tap Insulation Piercing Connector, Type IPC Dual Rated, Aluminum/Copper Conductor, 8 to 1/0 AWG Conductor, 1/2 in Bolt, 300 V AC, Specifications: 16 ft-lb Torque, 130 A Copper, 100 A Aluminum, 90 deg C, Copper, Tin Plated, Black, 2-5/16 in H x 1-15/32 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Conductor size8 to 1/0 AWG
Conductor TypeAluminum/Copper
Country of OriginMX
Dimensions2-5/16 in H x 1-15/32 in W
FinishTin Plated
ManufacturerECM Industries
MaterialCopper
Package TypeEACH
Temperature Rating90 deg C
TypeType IPC Dual Rated
Type / StyleType IPC Dual Rated
Voltage Rating300 V AC
Documents
Features
- Body is molded from tough, resilient glass filled nylon provides high degree of breakage resistance and long dependable use
- Compact design saves space
- Tin plated copper contact teeth easily penetrates most types of insulation
- Insulation piercing, no need to strip the conductor which saves installation time
- Perforated end tabs break out easily by hand
- Pre-filled with silicone lubricant prevents oxidation and moisture from entering the contact area
- Versatile - can be used as a splice or tap connector
- Increased safety contains no external energized parts, can be installed "hot" on energized conductors providing tap conductor is not under load
- Horizontal line grid provides a visual guide for proper installation of conductors
- For use with class B or C stranded conductor
- Dual-rated for aluminum and copper conductor
- Removable end tabs
- 8 to 2 AWG tap/secondary conductor
- 480 VAC grounded Y-system
Specifications
16 ft-lb Torque, 130 A Copper, 100 A Aluminum
