BURNDY AYPO600

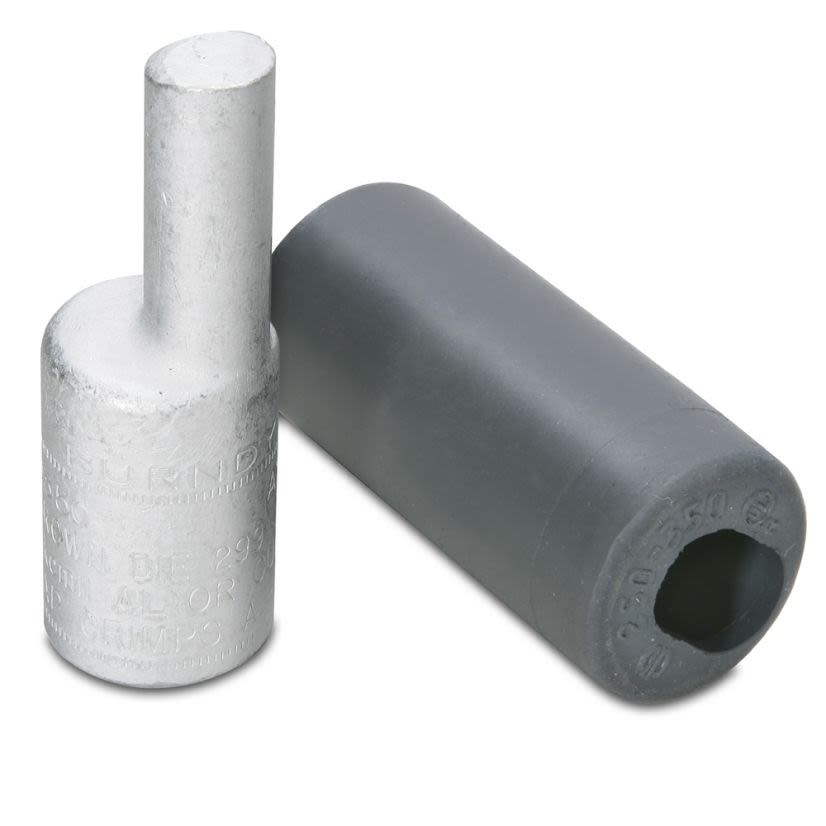

BURNDY HYPLUG AYPO600 Type AYPO Offset Compression Pin Adapter, 600 kcmil Conductor, Die Code: 936 Element A, 0.73 in Dia x 1.64 in L Pin, Aluminum
BURNDY AYPO600
BURNDY HYPLUG AYPO600 Type AYPO Offset Compression Pin Adapter, 600 kcmil Conductor, Die Code: 936 Element A, 0.73 in Dia x 1.64 in L Pin, AluminumNon-stock product. Available to order - lead time may vary.
BrandBURNDY
MFG #AYPO600
Werner Part #3856690
UPC781810738504
Non-stock product. Available to order - lead time may vary.
BrandBURNDY
MFG #AYPO600
Werner Part #3856690
UPC781810738504
Product Description
BURNDY HYPLUG Compression Pin Adapter, Type AYPO Offset, 600 kcmil Conductor, Die Code: 936 Element A, Yellow Color Code, 0.73 in Pin Dia, 1.64 in Pin Length, 1-5/8 in Barrel Length, 600 to 35000 V AC, 46 in Cover, 1-3/4 in L Wire Strip, Tin-Electro Plated, 194 deg F, Aluminum, 4.02 in L
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Length1-5/8 in
Conductor size600 kcmil
Country of OriginUS
Die Code936 Element A
Dimensions4.02 in L
ManufacturerHubbell
MaterialAluminum
Package TypeEACH
Pin Length1.64 in
TypeType AYPO Offset
Type / StyleType AYPO Offset
Voltage Rating600 to 35000 V AC
Documents
Applications
For aluminum and copper conductors, mechanical connectors in molded case circuit breakers, panel board equipment and meter sockets
Features
- All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion
- Provides the shortest connector length design possible permitting easy installation in equipment with limited working space
- Proper electrical connection made easily and eliminates the how tight is tight issue
- Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment
- Offset plug design available in sizes 2/0 through 750 kcmil providing flexibility and maximizing the use of limited space while eliminating interference between conductors and equipment
- Factory pre-filled with PENETROX oxide inhibiting compound with conductive metallic particles to penetrate aluminum oxide between strands and forms an air-tight connection
- EPDM rubber covers supplied with each connector and rated for 600V eliminating taping
- Only 5 die sets are required to install the complete line from 6 to 750 kcmil reducing inventory requirements
- Supplied in plastic convenience pack so cover and connector are kept together and free of foreign material until opened
- Connectors are clearly marked with catalog number, wire size, along with a color-coded die index providing clear, easy to use information
Specifications
46 in Cover, 1-3/4 in L Wire Strip, Tin-Electro Plated, 194 deg F
