nVent ILSCO PICS-64

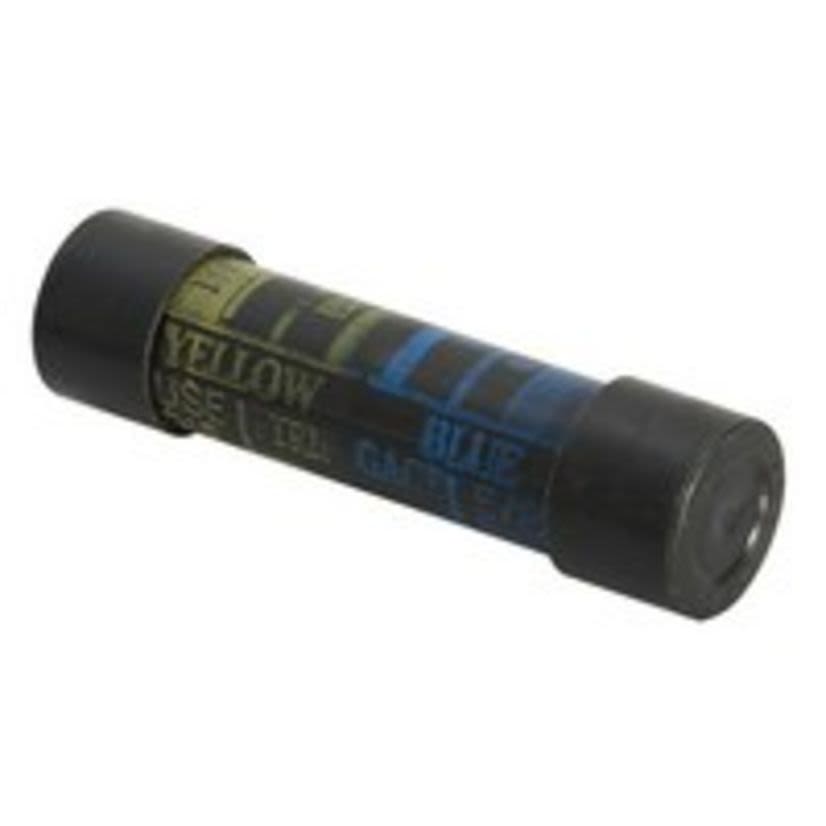

ILSCO ClearChoice PICS-64 PICS Pre-Insulated Dual Rated Service Entrance Sleeve, 6 to 4 AWG ACSR/Copper Conductor, Die Code: BG, 5/8, 2-7/8 in L, Aluminum
nVent ILSCO PICS-64
ILSCO ClearChoice PICS-64 PICS Pre-Insulated Dual Rated Service Entrance Sleeve, 6 to 4 AWG ACSR/Copper Conductor, Die Code: BG, 5/8, 2-7/8 in L, AluminumNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
ILSCO ClearChoice Service Entrance Sleeve, Pre-Insulated Dual Rated, Series: PICS, ACSR/Copper Conductor, 6 to 4 AWG Conductor, Die Code: BG, 5/8, 2-7/8 in Length, Aluminum, Blue
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlue
Conductor size6 to 4 AWG
Conductor TypeACSR/Copper
Country of OriginMX
Die CodeBG, 5/8
ManufacturerECM Industries
MaterialAluminum
Package TypeEACH
SeriesPICS
TypePre-Insulated Dual Rated
Type / StylePre-Insulated Dual Rated
Applications
For use with splicer/reducer
Features
- Concave polyethylene end caps
- Fast, easy installation
- Seal out dirt but are easily pierced when inserting conductor
- Ensures reliability
- Blue die code color
- 0.184 to 0.204 in side A and side B diameter
- Cap B - Blue and Cap A - Blue
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C119.4|RUS Certified|PROP65: it is not known to contain any chemicals associated with this regulation
