nVent ILSCO ACO-350

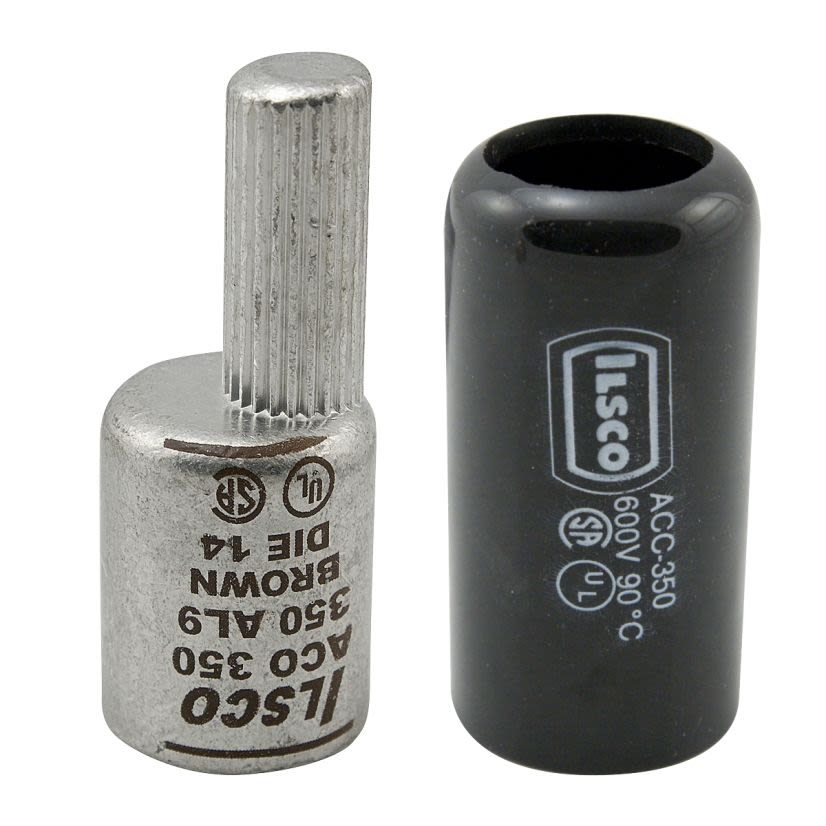

ILSCO ClearChoice ACO-350 Dual Rated Offset Pigtail Adapter With Insulating Cover, 350 kcmil Conductor, Die Code: 14, 0.57 in Dia x 1.34 in L Pin, Aluminum
nVent ILSCO ACO-350
ILSCO ClearChoice ACO-350 Dual Rated Offset Pigtail Adapter With Insulating Cover, 350 kcmil Conductor, Die Code: 14, 0.57 in Dia x 1.34 in L Pin, AluminumNon-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #ACO-350
Werner Part #232300
UPC783669009583
Non-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #ACO-350
Werner Part #232300
UPC783669009583
Product Description
ILSCO ClearChoice Pigtail Adapter, Dual Rated Offset, Series: ACO, 350 kcmil Conductor, Die Code: 14, Brown Color Code, 0.57 in Pin Diameter, 1.34 in Pin Length, 1.41 in Barrel Length, 600 V AC, Specifications: 2-1/4 in L Cover, 250 kcmil Pin, 23/32 in ID x 1-7/64 in OD, Aluminum
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Length1.41 in
Conductor size350 kcmil
Country of OriginMX
Die Code14
ManufacturerECM Industries
MaterialAluminum
Package TypeEACH
Pin Length1.34 in
SeriesACO
TypeDual Rated Offset
Type / StyleDual Rated Offset
Voltage Rating600 V AC
Documents
Applications
For terminating connector
Features
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics
- Pin is knurled which permits greater surface contact and off-center allows connectors to be rotated for parallel applications
- Color coded end caps inserted in barrel which prevents foreign materials from entering the connector prior to usage and color code identifies the proper compression die
- Pre-filled with DE-OX prevents oxide from forming
- Stranded class B and C concentric, compressed and unidirectional lay compact
- Rated for full ampacity of incoming conductor
- Clearly marked with conductor size and die index which provides easy identification and tooling recommendation
- Marked with number and location of crimps and color coded
- All supplied with insulating cover which eliminates taping, temperature range is 90 deg C and ensures reliability for aluminum or copper conductors
- Provides easy identification and tooling recommendation
- Chamfered barrel
Specifications
2-1/4 in L Cover, 250 kcmil Pin, 23/32 in ID x 1-7/64 in OD
