General Cable AP0061PNU-ILPA

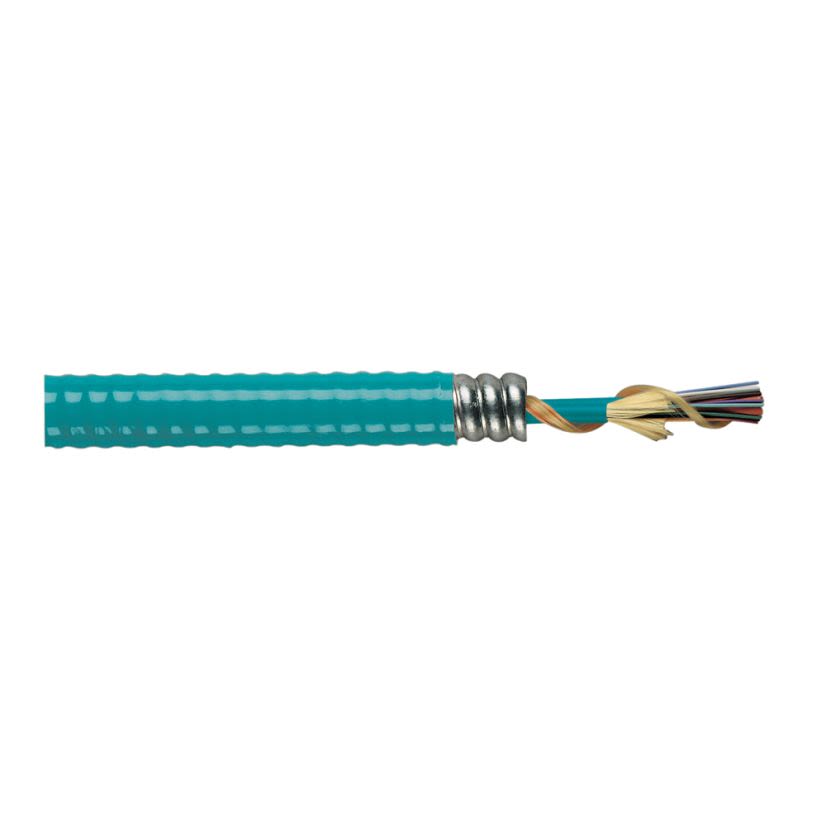

General Cable NextGen AP0061PNU-ILPA Armored Distribution Interlock Singlemode Tight Buffer Plenum Cable, Reel Packaging, 6 Fiber
General Cable AP0061PNU-ILPA
General Cable NextGen AP0061PNU-ILPA Armored Distribution Interlock Singlemode Tight Buffer Plenum Cable, Reel Packaging, 6 FiberIn Stock: 10470more info
|
In Stock: 10470more info
|
Product Description
General Cable NextGen Cable, Armored Distribution Interlock Singlemode Tight Buffer Plenum, Reel Packaging, 6 Fibers, 1 dB/km Attenuation, PVC Insulation, Aluminum Jacket, Yellow Jacket, -40 to 158 deg F
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Attenuation1 dB/km
Country of OriginUS
Fiber Count6
Insulation MaterialPVC
Jacket ColorYellow
Jacket MaterialAluminum
ManufacturerPrysmian
Package TypeREEL
Temperature Rating-40 to 158 deg F
TypeArmored Distribution Interlock Singlemode Tight Buffer Plenum
Documents
Applications
For harsh premises environments requiring heavy duty protection
Warranty
1 Year Limited
Features
- Interlock armor provides outstanding mechanical protection
- Interlock armor is flexible and easy to use
- Sub units are numbered for identification
- Sequential footage marked to facilitate installation
- Orange jacket multi-mode fibers (except 10 Gbps)
- Aramid fiber yarn overall strength member
- Yellow jacket single mode fibers
- Aqua jacket 10 Gbps multi-mode fibers
- Flame-retardant compound and sequential footage markings jacket
- 1500 lb/in maximum crush resistance
- Tight buffer SM, SMF-28 ultra and 62.5 um MM, InfiniCor 300 fiber
- 550 lb installation, 165 in-lb service maximum tensile load
- ETL type OFCP for installation in any premises location when installed in accordance with NEC article 770.154 and 770.179
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|ETL Type OFCP|CSA FT6|TIA 568 C.3|ICEA S-83-596|GR-409
