Panduit H200X084H1T

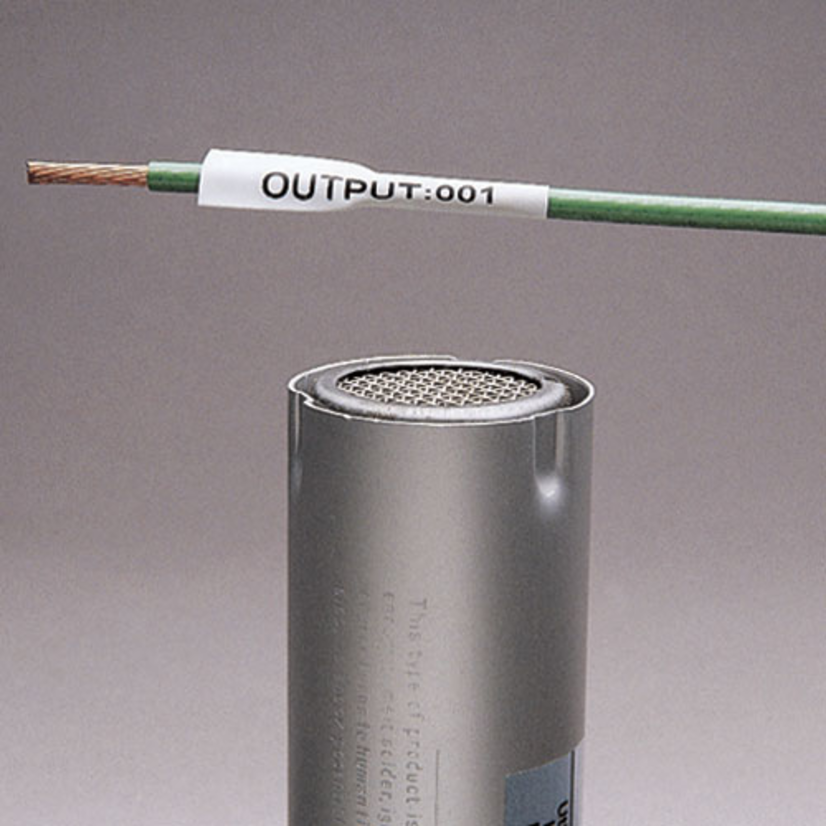

Panduit PAN-CODE H200X084H1T 1-Sided Military Grade Thermal Transfer Heat Shrink Label, 8 to 1 AWG Wire, White Marker, Polyolefin
Panduit H200X084H1T
Panduit PAN-CODE H200X084H1T 1-Sided Military Grade Thermal Transfer Heat Shrink Label, 8 to 1 AWG Wire, White Marker, PolyolefinOut of Stockmore info
|
BrandPanduit
MFG #H200X084H1T
Werner Part #3919701
UPC074983526659
Out of Stockmore info
|
BrandPanduit
MFG #H200X084H1T
Werner Part #3919701
UPC074983526659
Product Description
Panduit PAN-CODE Heat Shrink Label, 1-Sided Military Grade Thermal Transfer, 0.84 in Length, 2 in Width, 8 to 1 AWG Wire, White Marker, Polyolefin, -67 to 275 deg F
Attributes
Documents
Warranty
Applications
Features
Specifications
Attributes
Base Length2 in
Base Width1 in
ColorGray
Country of OriginUS
Length0.84 in
ManufacturerPanduit
MaterialPolyolefin
Maximum Tie Width0.19 in
Mounting TypeRubber Adhesive Tape
Package Height8.5 IN
Package Length8.7 in
Package Volume576295 cu-in
Package Weight2.35 lb
Package Width5.2 in
Size of Wire8 to 1 AWG
Temperature Rating-67 to 275 deg F
Tie Entry2-Way
Type1-Sided Military Grade Thermal Transfer
Type / Style1-Side Military Grade Thermal Transfer
Width2 in
Documents
Warranty
Limited
Applications
For wire and cable identification
Features
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- The thermal transfer military grade heat shrink label in white is 1-side with a 1/2 in Dia and made of 3:1 flattened polyolefin
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- The sleeve has 1 label per row and 500 labels per roll
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- Tested as an identification marker for use in (Class 1E) harsh environments
- Use thermal transfer hybrid ribbon or white resin ribbon
- Pre-cut 3:1 flattened polyolefin
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 224|AMS-DTL-23053/5C Class 1/3|MIL-M-81531/STD202F/STD-883E
