Panduit H200X064H1T

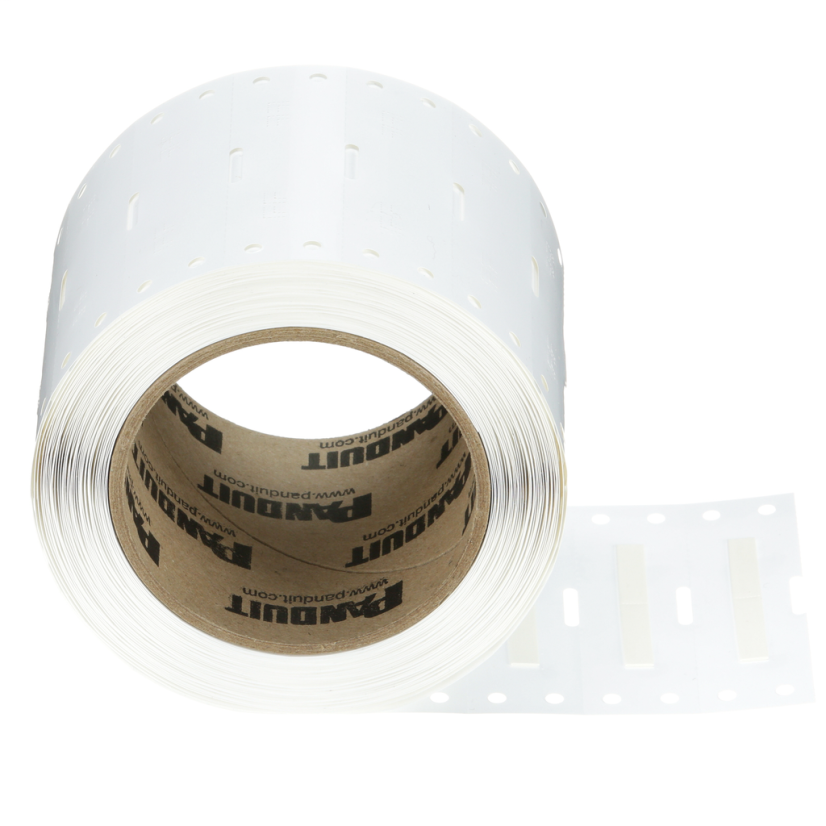

Panduit PAN-CODE H200X064H1T 1-Sided Military Grade Thermal Transfer Heat Shrink Label, 12 to 6 AWG Wire, White Marker, Polyolefin
Panduit H200X064H1T
Panduit PAN-CODE H200X064H1T 1-Sided Military Grade Thermal Transfer Heat Shrink Label, 12 to 6 AWG Wire, White Marker, PolyolefinNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #H200X064H1T
Werner Part #4212256
UPC074983526550
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #H200X064H1T
Werner Part #4212256
UPC074983526550
Product Description
Panduit PAN-CODE Heat Shrink Label, 1-Sided Military Grade Thermal Transfer, 0.64 in Length, 2 in Width, 12 to 6 AWG Wire, White Marker, Polyolefin, -67 to 275 deg F
Attributes
Documents
Warranty
Applications
Features
Specifications
Attributes
Base Length2 in
Base Width1 in
ColorIvory
Country of OriginUS
Length0.64 in
ManufacturerPanduit
MaterialPolyolefin
Maximum Tie Width0.19 in
Mounting TypeRubber Adhesive Tape
Package Height5.1 IN
Package Length8.7 in
Package Volume576295 cu-in
Package Weight2.35 lb
Package Width8.5 IN
Temperature Rating-67 to 275 deg F
Tie Entry2-Way
Type1-Sided Military Grade Thermal Transfer
Type / Style1-Side Military Grade Thermal Transfer
Width2 in
Documents
Warranty
Limited
Applications
Eire and Cable Identification Applications
Features
- Labels offer crisp, clear legends with superior legibility
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- Shrink ratio 3:1
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- It offers crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix
- The heat-shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- Permanent, 1-piece, heat shrink sleeve designed to provide clear, durable identification of wires and cables
- Labels offer crisp, clear legends with superior legibility
- Pre-cut 3:1 flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- Tested as an identification marker for use in (Class 1E) harsh environments
- Use thermal transfer hybrid ribbon or white resin ribbon
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 224|AMS-DTL-23053/5C Class 1/3|MIL-M-81531/STD202F/STD-883E
