Panduit H100X064H1T

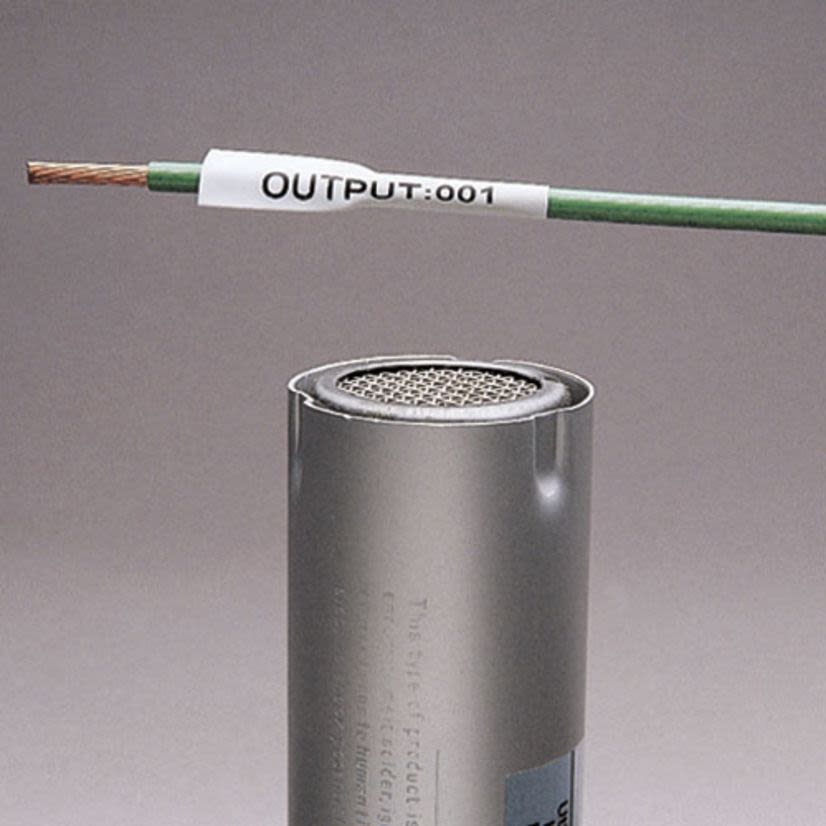

Panduit PAN-CODE H100X064H1T 1-Sided Military Grade Thermal Transfer Heat Shrink Label, 12 to 6 AWG Wire, White Marker, Polyolefin
Panduit H100X064H1T
Panduit PAN-CODE H100X064H1T 1-Sided Military Grade Thermal Transfer Heat Shrink Label, 12 to 6 AWG Wire, White Marker, PolyolefinNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #H100X064H1T
Werner Part #3967852
UPC074983522590
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #H100X064H1T
Werner Part #3967852
UPC074983522590
Product Description
Panduit PAN-CODE Heat Shrink Label, 1-Sided Military Grade Thermal Transfer, 0.64 in Length, 1 in Width, 12 to 6 AWG Wire, White Marker, Polyolefin, -67 to 275 deg F
Attributes
Documents
Warranty
Applications
Features
Specifications
Attributes
Base Length1 in
Base Width1 in
ColorBlack
Country of OriginUS
Length0.64 in
ManufacturerPanduit
MaterialPolyolefin
Maximum Tie Width0.19 in
Mounting TypeAcrylic Adhesive Tape
Package Height8.5 IN
Package Length8.65 IN
Package Volume576295 cu-in
Package Weight2.35 lb
Package Width5.25 in
Temperature Rating-67 to 275 deg F
Tie Entry4-Way
Type1-Sided Military Grade Thermal Transfer
Type / Style1-Side Military Grade Thermal Transfer
Width1 in
Documents
Warranty
Limited
Applications
For wire and cable identification
Features
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- The thermal transfer military grade heat shrink label in white is 1-side with a 3/8 in Dia and made of 3:1 flattened polyolefin
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- The sleeve has 2 labels per row and 1000 labels per roll
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- Tested as an identification marker for use in (Class 1E) harsh environments
- Use thermal transfer hybrid ribbon or white resin ribbon
- Pre-cut 3:1 flattened polyolefin
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 224|AMS-DTL-23053/5C Class 1/3|MIL-M-81531/STD202F/STD-883E
