Cutler-Hammer Series 3S550

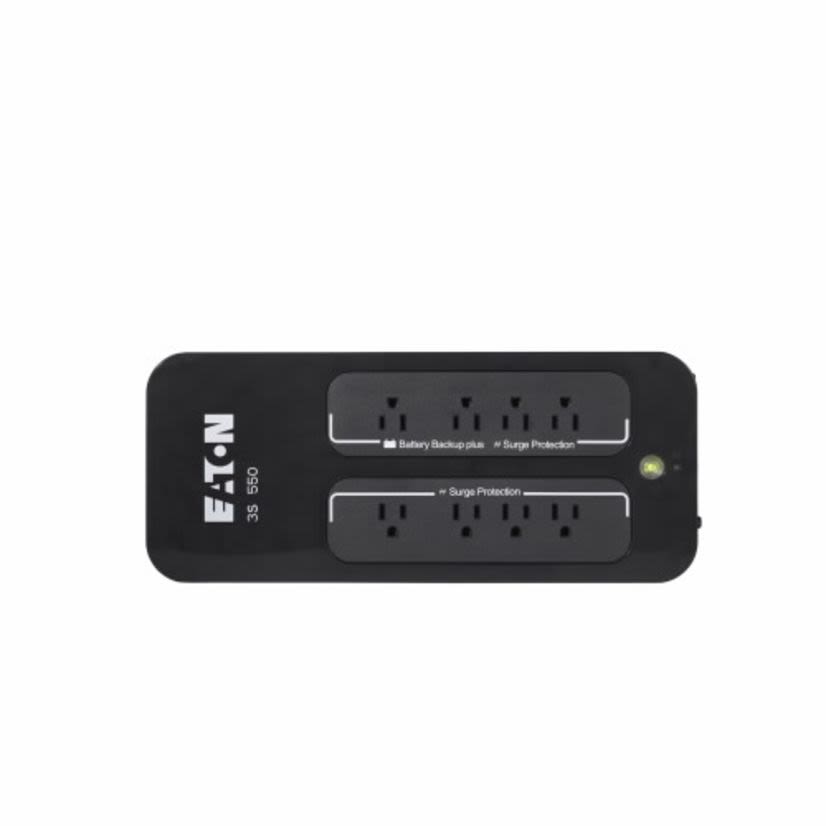

EATON 3S550 Uninterruptible Power Supply, 120 V AC Input, 102 to 132 VAC Output, 550 VA/330 W Power Rating, 45 min Backup, 8 Outlets
Cutler-Hammer Series 3S550
EATON 3S550 Uninterruptible Power Supply, 120 V AC Input, 102 to 132 VAC Output, 550 VA/330 W Power Rating, 45 min Backup, 8 OutletsNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #3S550
Werner Part #3951261
UPC743172034625
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #3S550
Werner Part #3951261
UPC743172034625
Product Description
EATON Uninterruptible Power Supply, Series: 3S, 120 V AC Input, 102 to 132 VAC Output, 550 VA/330 W Power, 57 to 70 Hz Frequency, 45 min Backup, 8 Outlets, 5-15P Plug Configuration, (4) 5-15R Receptacle Configuration, 6 ft Cord Length, Tower Mounting, USB Interface, Sealed/Lead Acid Battery, Environmental Conditions: 5 to 122 deg F Storage Temperature, 20 to 93% Non-Condensing Relative Humidity, <50 dBA Audible Noise, 13.2 in L x 5.5 in W x 3.4 in H Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
Backup Time45 min
BatterySealed/Lead Acid
Cord Length6 ft
Country of OriginSri Lanka
Dimensions13.2 in L x 5.5 in W x 3.4 in H
Environmental Conditions5 to 122 deg F Storage Temperature, 20 to 93% Non-Condensing Relative Humidity, <50 dBA Audible Noise
Frequency Rating57 to 70 Hz
Input Voltage120 V AC
InterfaceUSB
LengthCord: 6 ft
ManufacturerEaton
Mounting TypeTower
NEMA Plug Configuration5-15P
NEMA Receptacle Configuration(4) 5-15R
Number of Outlets8
Output Voltage102 to 132 V AC
Package TypeEACH
Power Rating550 VA/330 W
Series3S
Documents
Applications
For backup power and electronic power conversion
Included
1 Ready-To-Go UPS, USB Cable and User Guide
Features
- Standby with high frequency converter topology
- Desktop mini tower configuration
- Black color
- 330 W power rating
- Full system self-test at power up diagnostics
- >97% (normal mode), 75% (on battery) efficiency
- 0.6 input power factor
- -10%, +6% of nominal on battery voltage regulation
- 1 to 4 ms typical transfer time
- Two groups of two controlled outlets load segments
- Sealed, maintenance-free lead acid battery
- Allows start of UPS without utility input
- One status indicating LED
- 0 to 40 deg C operating temperature
- Up to 10000 ft without de-rating altitude
- Electronic current limit
Specifications
- Backup Time: 45 min
