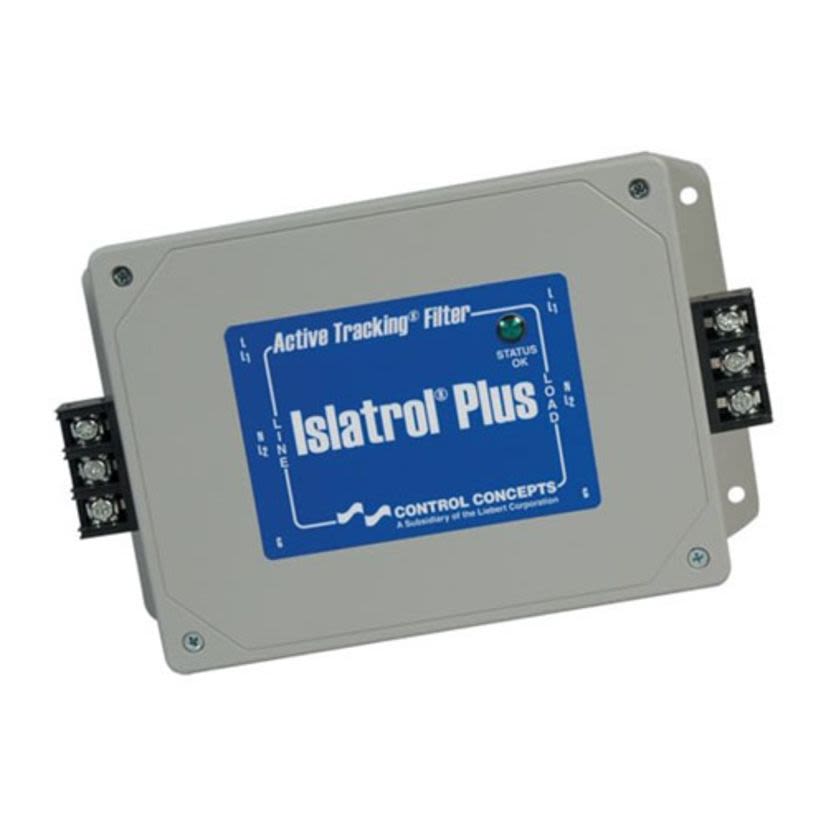

SolaHD Islatrol Edco Active Tracking Filter, Series: IC+, 7.5 A at 120 V AC Electrical Rating, 100 kHz to 50 MHz Bandwidth, 2 Wires, 1 ph, 45000 A Peak Surge Current, Modes of Protection: L-N/L-G/N-G, <0.5 ns Normal Mode, < 5 ns Common Mode Response, LED Indicator, Class: Category A Ringwave (6 kV, 200 A, 100 kHz)/Category B Ringwave (6 kV, 500 A, 100 kHz), Environmental Conditions: -40 to 45 deg C Operating, 0 to 95% Humidity, Flanged Mounting, 4.75 in L x 4.75 in W x 2.35 in H Dimensions, Plastic
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Bandwidth100 kHz to 50 MHz
ClassCategory A Ringwave (6 kV, 200 A, 100 kHz)/Category B Ringwave (6 kV, 500 A, 100 kHz)
Country of OriginMX
Dimensions4.75 in L x 4.75 in W x 2.35 in H
Electrical Ratings7.5 A at 120 V AC
Environmental Conditions-40 to 45 deg C Operating, 0 to 95% Humidity
IndicatorLED
ManufacturerEmerson Electric
MaterialPlastic
Modes of ProtectionL-N/L-G/N-G
Mounting TypeFlanged
Number of Wires2
Package TypeEACH
Peak Surge Current45000 A
Phase1
Response Time<0.5 ns Normal Mode, < 5 ns Common Mode
