SolaHD STV100K-48D

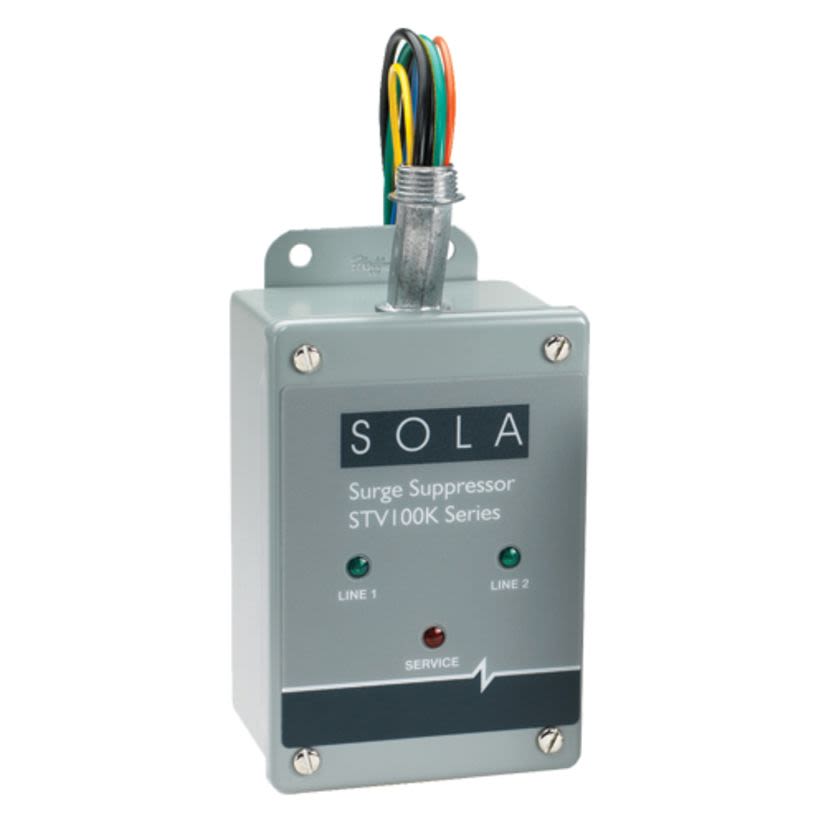

SolaHD STV100K-48D STV 100K Surge Protective Device, 480 V AC, 47 to 63 Hz, 100 kA SCCR, 3 Phase
SolaHD STV100K-48D
SolaHD STV100K-48D STV 100K Surge Protective Device, 480 V AC, 47 to 63 Hz, 100 kA SCCR, 3 PhaseInventory Not Available
Inventory Not Available
Product Description
SolaHD Surge Protective Device, Series: STV 100K, 480 V AC Electrical Rating, 47 to 63 Hz Frequency, 3 Wires, 100 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-L/L-G/N-G, <0.5 ns Response, LED/Audible Alarm Indicator, 3 ph, Environmental Conditions: -40 to 60 deg C Temperature/0 to 95% Non-Condensing Humidity, NEMA 12 Enclosure, Flanged Mounting, Metal, 3.2 in H x 6 in W x 4 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions3.2 in H x 6 in W x 4 in D
Electrical Ratings480 V AC
Enclosure TypeNEMA 12
Environmental Conditions-40 to 60 deg C Temperature/0 to 95% Non-Condensing Humidity
Frequency Rating47 to 63 Hz
IndicatorLED/Audible Alarm
ManufacturerEmerson Electric
MaterialMetal
Modes of ProtectionL-N/L-L/L-G/N-G
Mounting TypeFlanged
Nominal Discharge Current20 kA
Number of Wires3
Package TypeEACH
Peak Surge Current100 kA
Phase3
Response Time<0.5 ns
SeriesSTV 100K
Short Circuit Current Rating100 kA
Type / StyleSTV 100 K Series Surge Protection Devices
Documents
Applications
Distribution Panels (< 1200 A), Branch, Lighting and Control Panels, Factory Automation Installations and Dedicated Industrial Equipment
Warranty
Limited
Features
- Low clamping levels for more effective protection
- 100 kA peak current rating provides all mode protection against severe transients
- LED status and audible alarms
- Compact, rugged meta
Specifications
- Modes of Protection: L-N/L-L/L-G/N-G
