SolaHD E250

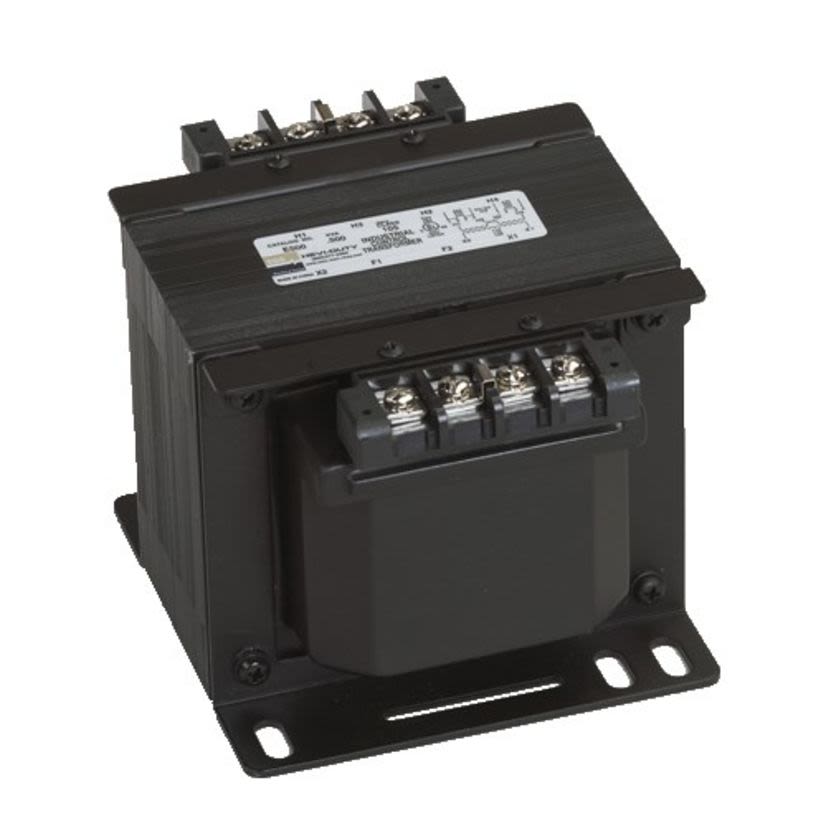

SolaHD E250 SBE Encapsulated Control Transformer, 240/480 V AC Primary, 120 VAC Secondary, 0.25 kVA Power Rating, 50/60 Hz, 1 Phase
SolaHD E250
SolaHD E250 SBE Encapsulated Control Transformer, 240/480 V AC Primary, 120 VAC Secondary, 0.25 kVA Power Rating, 50/60 Hz, 1 PhaseIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
SolaHD Control Transformer, Encapsulated, Series: SBE, 240/480 V AC Primary, 120 VAC Secondary, 0.25 kVA Power, 50/60 Hz Frequency, 1 ph, Wire Lead Connection, Surface Mounting, 105 deg C Insulation, IP20 Enclosure, 131 deg F, 4.79 in L x 4.5 in W x 3.89 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Connection TypeWire Lead
Country of OriginVN
Dimensions4.79 in L x 4.5 in W x 3.89 in H
Enclosure TypeIP20
Frequency Rating50/60 Hz
Insulation Type105 deg C
ManufacturerEmerson Electric
Mounting TypeSurface
Package TypeEACH
Phase1
Power Rating0.25 kVA
Primary Voltage240/480 V AC
Secondary Voltage120 V AC
SeriesSBE
Temperature Rating131 deg F
TypeEncapsulated
Type / StyleEncapsulated
Documents
Applications
World Wide and Industrial Applications
Included
FB2X Secondary Fuse Holder
Warranty
Limited
Features
- Interleaved copper windings reduce I2R losses and maximize efficiency
- Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants
- Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability
- Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity
- Heavy gauge steel mounting plate
- Mounting dimensions are compatible with similar control transformers
- 131 deg F rise, 105 deg C insulation system to minimize heat
- Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges
