FLUKE FLUKE-381

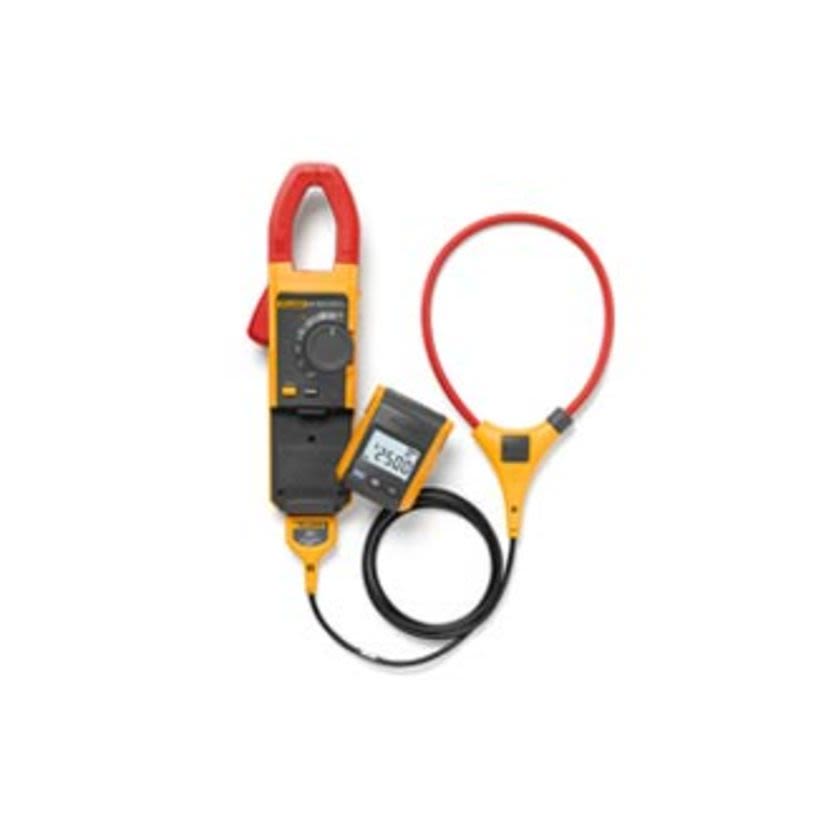

Fluke FLUKE-381 Clamp Meter, 999.9 A. 600 V AC, 1000 V DC, 60 kOhm, 500 Hz, 34 mm Jaw, Removable Wireless Display
FLUKE FLUKE-381
Fluke FLUKE-381 Clamp Meter, 999.9 A. 600 V AC, 1000 V DC, 60 kOhm, 500 Hz, 34 mm Jaw, Removable Wireless DisplayOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Fluke Clamp Meter, 999.9 A. 600 V AC, 1000 V DC Electrical Rating, 60 kOhm Resistance, 500 Hz Frequency, 34 mm Jaw, Removable Wireless Display, 2% +/-5 Digits at 999.9 A, 3% +/-5 Digits at 2500 A AC Current Accuracy, 1.5% +/-5 Digits at 1000 VAC, 1% +/-5 Digits at 1000 VDC Voltage Accuracy, Safety Rating: CAT IV 600 VAC/CAT III 1000 VAC, -10 to 50 deg C Operating, 10.9 in L x 3.46 in W x 1.69 in H Dimensions, Hard Plastic
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
AC Current Accuracy2% +/-5 Digits at 999.9 A, 3% +/-5 Digits at 2500 A
CapacityJaw: 34 mm
Country of OriginUnited States
Dimensions10.9 in L x 3.46 in W x 1.69 in H
Display TypeRemovable Wireless
Electrical Ratings999.9 A. 600 V AC, 1000 V DC
Frequency Rating500 Hz
Jaw_Capacity34 mm
ManufacturerFluke
MaterialHard Plastic
Operating Temperature-10 to 50 deg C
Package TypeBOX
Resistance60 kOhm
Safety RatingCAT IV 600 V AC/CAT III 1000 V AC
Type / StyleClamp Meter
Voltage Accuracy1.5% +/-5 Digits at 1000 V AC, 1% +/-5 Digits at 1000 V DC
Applications
For clamp meter with remote-display module and detachable iFlex enabling measurements in difficult situations such as a hazardous environments or very tight spaces
Included
(1) 18 in iFlex Flexible Current Probe, (5) AA Alkaline Batteries, (1) Coated Instruction Card, (1) Safety Information Sheet, (1) Soft Carrying Case and (1) TL75 Test Lead
Warranty
3 years
Features
- Wireless technology allows the display to be carried up to 30 ft away from the point of measurement for added flexibility without interference with measurement accuracy
- The removable magnetic display can be conveniently mounted where it is easily seen
- IFlex flexible current probe expands the measurement range to 2500 A AC
- CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC
- Integrated low pass filter and state-of the art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing protective equipment
- Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Soft carrying case
- Accuracy - 2% +/-5 digits dc current/1.5% +/-5 digits (20 to 500 Hz) AC voltage/1% +/-5 digits dc voltage/ 1% +/-5 digits resistance
- Resolution - 0.1 A AC current via jaw/0.1 A (</=600 a)/1 A (</=2500 a) AC current via flexible current probe/0.1 a DC current/0.1 VAC voltage/0.1 VDC voltage/0.1 Ohm/1 Ohm/10 Ohm resistance
- 2000 m operating altitude, 12000 m storage altitude
- 7.5 mm flexible current probe diameter
- 1.8 m flexible current probe cable length (head to electronics connector)
- Add 0.1 x specified accuracy for each deg C above 28 deg C or below 18 deg C temperature coefficients
- 3 at 500 A, 2.5 at 600 A, 1.42 at 1000 A, add 2% for C.F, >2 AC current via jaw/3.0 at 1100 A, 2.5 at 1400 A, 1.42 at 2500 A, add 2% for C.F, >2 2 AC current via flexible current probe crest factor (50/60 Hz)
- <=30 Ohm measure continuity
- 100 ms measure inrush
- Range 5 to 500 Hz frequency via jaw and flexible current probe, 600 Ohm/6 kOhm/60 kOhm resistance, 2% +/-5 digit (10 to 100 Hz), 5% +/-5 digit (100 to 500 Hz) via jaw, 3% +/-5 digit via flexible current probe AC current accuracy, 1.5% +/-5 digit (20 to 500 Hz) AC voltage, 1% +/-5 digit DC voltage accuracy
Specifications
- Safety Rating: CAT IV 600 VAC/CAT III 1000 VAC
