SMC SY5140-5DZ

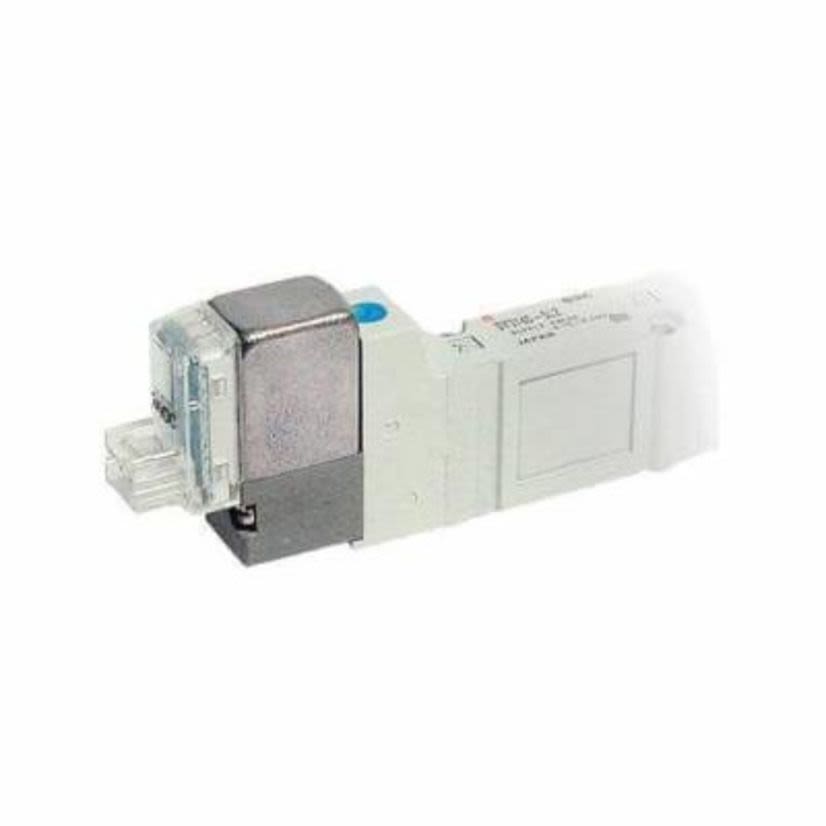

SMC SY5140-5DZ SY5000 5-Port Single Solenoid Valve With Connector, 1/4 in Port, 0.15 to 0.7 MPa Pressure, 4 Ways, 2 Positions
SMC SY5140-5DZ
SMC SY5140-5DZ SY5000 5-Port Single Solenoid Valve With Connector, 1/4 in Port, 0.15 to 0.7 MPa Pressure, 4 Ways, 2 PositionsIn Stock: 12more info
|
BrandSMC
MFG #SY5140-5DZ
Werner Part #2116134
In Stock: 12more info
|
BrandSMC
MFG #SY5140-5DZ
Werner Part #2116134
Product Description
SMC Solenoid Valve, 5-Port Single, Series: SY5000, 1/4 in, 0.15 to 0.7 MPa, -10 to 50 deg C, 4 Ways, 2 Positions, Media: Air, Pilot Operated Actuator, Die-Cast Aluminum Body, Rubber Seal, 114.9 mm L x 35 mm W x 83.4 mm H
Attributes
Features
Specifications
Attributes
Actuator TypePilot Operated
Body MaterialDie-Cast Aluminum
Height61.4 mm
Length16.6 mm
ManufacturerSMC Corporation of America
Number ofWays: 4
Port Size1/4 in
Pressure Rating0.15 to 0.7 MPa
SeriesSY5000
Temperature Rating-10 to 50 deg C
Type / Style5 Port Solenoid Valve
Weight92 g
Width104.9 mm
Features
- Air fluid
- 3/5/6/12/24 VDC/100/110/200/220 VAC rated coil voltage
- 32 msec or less response time at 0.5 mPa without indicator light and surge voltage suppressor
- 2-position single function
- Base mounted non plug in single/stacking base, plug in stacking base piping
- Internal pilot
- 24 VDC solenoid voltage
- DIN terminal with connector lead wire
- Light and surge suppressor
- Non-locking push style manual override
- Base mounted without sub plate port size
- Body ported 10.6 sq-mm effective area
- Base mounted 12.6 sq-mm effective area
Specifications
Media: Air
