Littelfuse SB5032-012-0

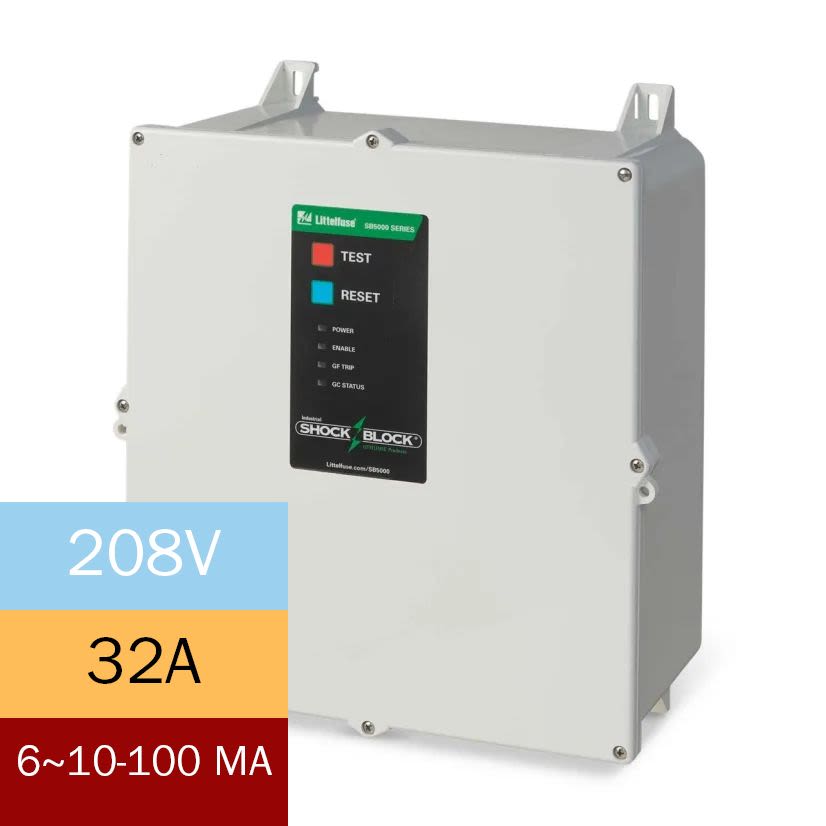

Littelfuse SB5032-012-0 SB5000 EGFPD Shock Block, 208 V, 32 A, Thermal Magnetic Trip
Littelfuse SB5032-012-0
Littelfuse SB5032-012-0 SB5000 EGFPD Shock Block, 208 V, 32 A, Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #SB5032-012-0
Werner Part #4507119
UPC079458378795
Non-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #SB5032-012-0
Werner Part #4507119
UPC079458378795
Product Description
Littelfuse, SB5032-012-0, Shock Block, EGFPD, Series: SB5000, 208 V, 32 A, 60 Hz Frequency, Thermal Magnetic Trip, NEMA 4X/IP69K Enclosure, -35 to 40 deg C, 14.10 in H x 9.86 in W x 6.69 in D Dimensions, Stainless Steel
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginMexico
Dimensions14.10 in H x 9.86 in W x 6.69 in D
Enclosure TypeNEMA 4X/IP69K
Frequency Rating60 Hz
ManufacturerLittelfuse
MaterialStainless Steel
Mounting TypeWall
SeriesSB5000
Temperature Rating-35 to 40 deg C
Trip Level6 mA, 10-100 mA (Selectable)
Trip TypeThermal Magnetic
TypeEGFPD
Applications
For Commercial and Industrial Applications
Features
- UL 943 inverse time trip curve, Inverse time detection circuit protects people while also reducing the probability of nuisance tripping
- DFT (Discrete Fourier Transform) filtering algorithm eliminates nuisance trips due to harmonics
- Minimum trip time < 20 msec reduces the risk of ventricular fibrillation for leakage current of 250 mA and above
- Two-stage ground monitor with Zener termination that meets UL 943C, CSA M421
- Flexible configuration selectable manual reset or autoreset for brownout, power up, and ground monitor interruptions to fit plant safety protocols
- Auxiliary contact alerts your SCADA system if the Shock Block is energized or tripped
- Automatic self-test the Shock Block will continuously test itself and will trip if there is an internal failure
- GFCI Class A, C, D and EGFPD options in one series simplified planning and operator familiarity for multiple applications/requirements
Specifications
- UL Listed
- cURus Listed
