JUNO R500 WH

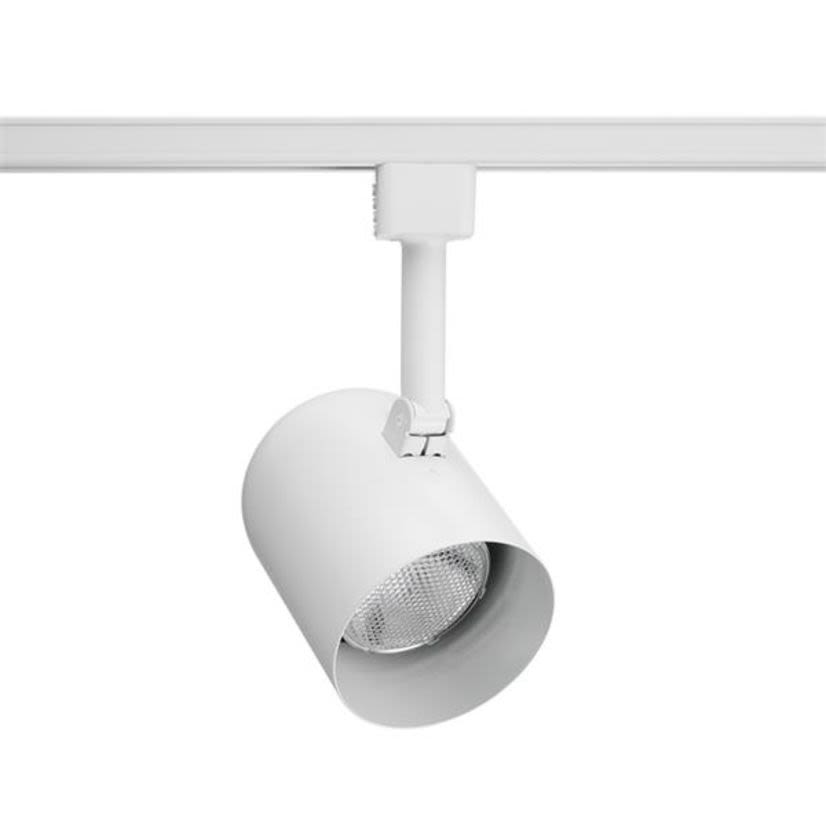

Juno Trac-Lites R500 WH Line Voltage Track Head, Incandescent Lamp, 120 V AC, Round Back Cylinder Head, 4 in Max Extension
JUNO R500 WH
Juno Trac-Lites R500 WH Line Voltage Track Head, Incandescent Lamp, 120 V AC, Round Back Cylinder Head, 4 in Max ExtensionNon-stock product. Available to order - lead time may vary.
BrandJUNO
MFG #R500 WH
Werner Part #4561621
UPC661209030559
Non-stock product. Available to order - lead time may vary.
BrandJUNO
MFG #R500 WH
Werner Part #4561621
UPC661209030559
Product Description
Juno Trac-Lites Track Head, Line Voltage, Series: R500, Incandescent Lamp, 120 V AC, 50 W Lamp, 4 in Maximum Extension, Medium Lamp Base, 1 Lamp, Round Back Cylinder Head, 3-1/2 in Diameter, 5 in Length, Fixture Mounting, Steel Housing Material, White Housing Finish
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorWhite
Country of OriginVN
Diameter3-1/2 in
Fixture Wattage50 W
Housing FinishWhite
Housing MaterialSteel
Lamp Base TypeMedium
Lamp TypeIncandescent
Lamp Wattage50 W
ManufacturerAcuity Brands
Mounting TypeTrack/Monopoint
Number of Lamps1
Package Height7.99 in
Package Length6.61 in
Package TypeEACH
Package Weight0.8 lb
Package Width4.13 in
SeriesR500
ShapePAR20, R20
TypeLine Voltage
Voltage Rating120 V AC
Documents
Applications
Trac Lighting Applications
Features
- The timeless round back spotlight provides deep lamp shielding
- 90 deg C vertical aiming capability and 358 deg C rotation
- Copper alloy contacts provide precise spring action
- True, positive electrical ground
- Patented embossed polarity arrows on bottom of adapter
- Spring loaded locking latch with embossed polarity arrows secures trac light to trac
- Compatible with Trac-Master 120V one circuit system Trac-Master 120 V two circuit system, Trac-Master 120 V tube system, Trac-Master 120V recessed system, Trac-Lites one circuit system
- Pull-up contact to up position for use on Trac-Master two circuit trac
- Medium base porcelain socket with nickel plated copper screw shell
- Drawn steel housing with polycarbonate stem
- For use with PAR20/R20 lamp
Specifications
- Light Source: Incandescent
- Track Mounting Adapter: JTYPE
