Lithonia Lighting CNY LED P1 40K MVOLT DDB M4

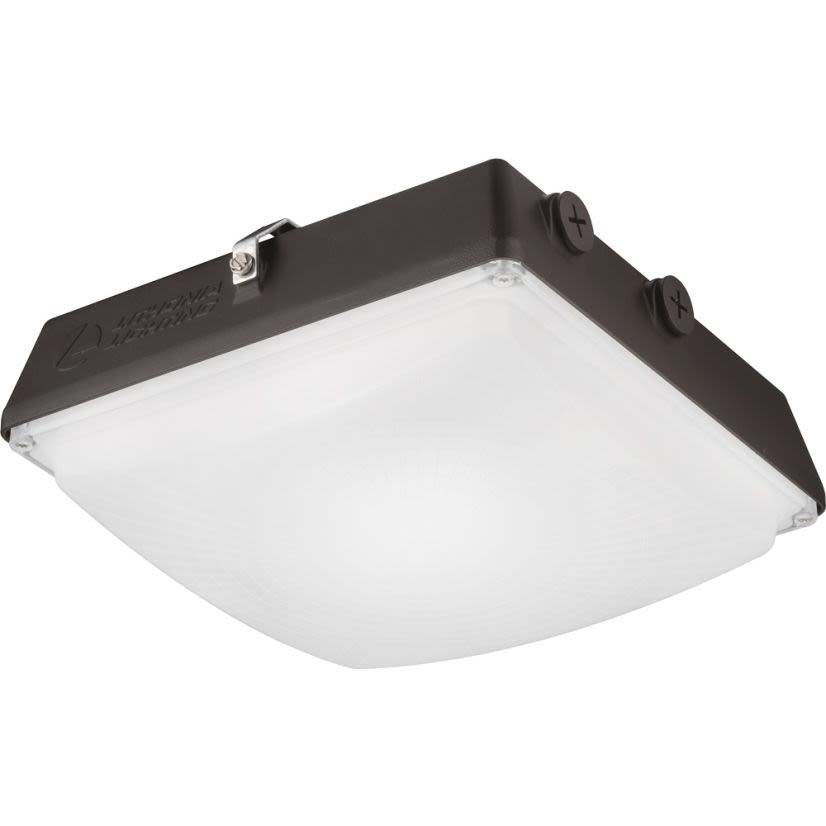

Lithonia Lighting CNY LED P1 40K MVOLT DDB M4 CNY Square Canopy Lighting, 35 W Fixture, 120 to 277 VAC, Dark Bronze Housing
Lithonia Lighting CNY LED P1 40K MVOLT DDB M4
Lithonia Lighting CNY LED P1 40K MVOLT DDB M4 CNY Square Canopy Lighting, 35 W Fixture, 120 to 277 VAC, Dark Bronze HousingNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #CNY LED P1 40K MVOLT DDB M4
Werner Part #4245839
UPC191848093320
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #CNY LED P1 40K MVOLT DDB M4
Werner Part #4245839
UPC191848093320
Product Description
Lithonia Lighting, CNY LED P1 40K MVOLT DDB M4, Canopy Lighting, Square, Series: CNY, 120 to 277 VAC, 35 W Fixture, 128.6 Lumens/W Light Output, 100000 hr Average Life, Cool White Light, 4000 K Color Temperature, 70 CRI, Translucent Acrylic Lens, 4500 Lumens, Surface Mounting, Cast Aluminum Housing Material, Dark Bronze Housing Finish, 10 in H x 10 in W x 4-1/2 in D Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
Average Life100000 hr
Ballast TypeConstant Wattage Autotransformer (CWA)
Color Rendering Index (CRI)70
Color Temperature4000 K
Country of OriginCN
Dimensions10 in H x 10 in W x 4-1/2 in D
Fixture Wattage35 W
Housing FinishDark Bronze
Housing MaterialCast Aluminum
Lamp Base TypeMogul
Lamp TypeLED
Lamp Wattage1000 W
Lens TypeTranslucent Acrylic
Light ColorCool White
Lumen4500 Lumens
ManufacturerAcuity Brands
Mounting TypeSuspended
Number of Lamps1
Package Height5.75 in
Package Length11.5 IN
Package TypeEACH
Package Weight8.4 lb
Package Width11.5 in
SeriesCNY
TypeSquare
Voltage Rating120 to 277 V AC
Documents
Applications
Office, Banks, Residential, Retail, Building Entrances, Walkways, Loading Docks, Covered Parking Areas and Outdoor Applications
Features
- The Lithonia Lighting CNY LED canopy luminaires are energy efficient and budget friendly, perfect for replacing up to 400W metal halide luminaires while saving up to 80 Percent energy costs
- An LED array and translucent lens create uniform and visually comfortable illumination
- CONTROLS - Hardwired on/off capability only
- INSTALLATION - Quick mount mechanism significantly reduces installation time with no need to open the luminaire for installation
- Can mount to recessed junction box, surface mount with three conduit entry points or pendant mounted with 3/4 NPT pendant stem
- HOURS OF LIFE - LEDs maintain 70 Percent of light output at 50,000 or more hours of service life (L70/50,000 hr)
- BATTERY BACKUP - No emergency battery back-up available in this version
Warranty
5 Years Limited
