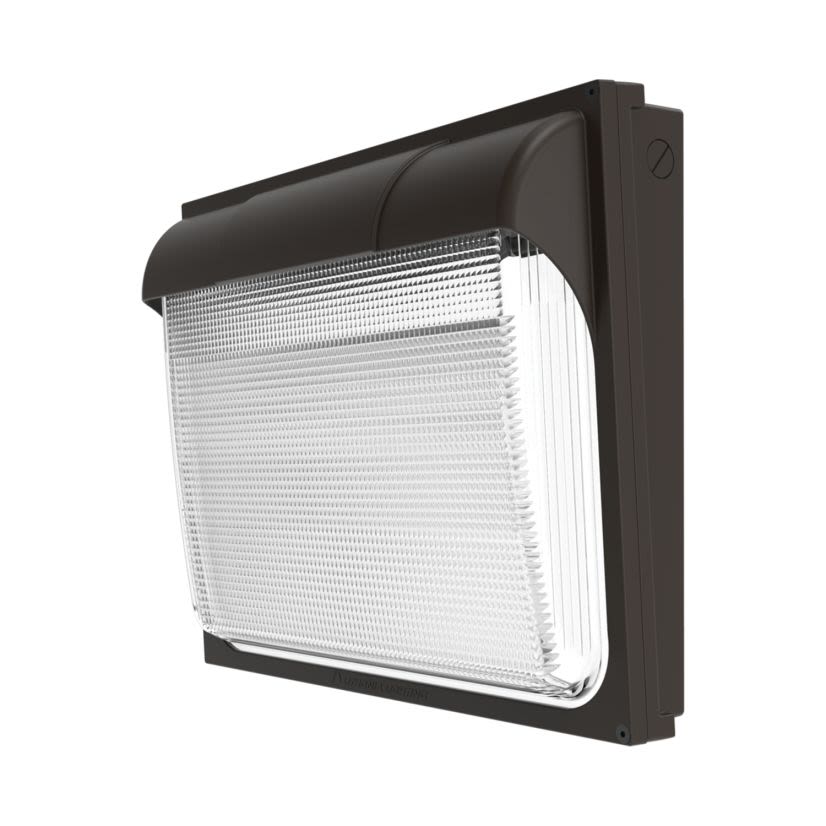

Lithonia Lighting TWX3 LED ALO 50K MVOLT DDBTXD
Lithonia Lighting Contractor Select TWX3 LED ALO 50K MVOLT DDBTXD Rectangular Adjustable Light Output Wallpack, LED Lamp, 108 W Fixture, 120 to 277 V AC, Textured Dark Bronze Housing
Lithonia Lighting TWX3 LED ALO 50K MVOLT DDBTXD
Lithonia Lighting Contractor Select TWX3 LED ALO 50K MVOLT DDBTXD Rectangular Adjustable Light Output Wallpack, LED Lamp, 108 W Fixture, 120 to 277 V AC, Textured Dark Bronze HousingIn Stock: 31more info
|
In Stock: 31more info
|
Product Description
Lithonia Lighting Contractor Select Wallpack, Rectangular Adjustable Light Output, Series: TWX3 Series, 120 to 277 V AC, 108 W Fixture, LED Lamp, 100000 hr Average Life, 5000 K Color, Electronic/0 to 10 V Dimmable Driver Ballast, Borosilicate Glass Lens, 2900 to 13850 Lumens, IP65, Surface Mount, Die Cast Aluminum Housing, Textured Dark Bronze Housing, 18 in W x 5 in D x 14 in H
Attributes
Documents
Features
Warranty
Applications
Included
Attributes
Average Life100000 hr
Ballast TypeElectronic/0 to 10 V Dimmable Driver
ColorWhite
Color Temperature5000 K
Country of OriginMX
Dimensions18 in W x 5 in D x 14 in H
Enclosure TypeIP65
FinishGloss
Fixture Wattage108 W
Housing FinishTextured Dark Bronze
Housing MaterialDie Cast Aluminum
Lamp TypeLED
Lens TypeBorosilicate Glass
Lumen2900 to 13850 Lumens
ManufacturerAcuity Brands
MaterialAluminum
Mounting TypeSurface
SeriesTWX3 Series
TypeRectangular Adjustable Light Output
Voltage Rating120 to 277 V AC
Wattage10.6 W
Documents
Features
- TWX LED wall packs feature premium borosilicate glass lenses that work in conjunction with the high-efficiency light engine to provide superior illumination while minimizing wasted up-light
- The new slim design creates a less obtrusive appearance on the building while still fully covering the unsightly stains leftover from typical metal halide glass wall packs
- The TWX3 LED is energy efficient saving up to 84 Percent in energy costs when replacing a metal halide luminaire
- The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site
- TECHNOLOGY - Adjustable light output maximizes flexibility in the field
- Dial in the lumens you need through a rotary switch located inside of the luminaire
- PHOTOCELL - Hardwired on/off capability only
- VOLTAGE - MVOLT for 120-277V (50/60Hz)
- HOURS OF LIFE - Light engine consists of high-efficacy LEDs mounted to housing to maximize heat dissipation and promote long-life (up to L81/100,000 hr at 25 deg C)
- FINISH - Exterior painted parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish providing superior resistance to corrosion and weathering withstanding extreme climate changes without cracking or peeling
- BATTERY BACKUP - No emergency battery back-up available in this version
Warranty
5 years Limited
Applications
Automotive and Parking, Education, Government, Hospitality, House of Worship, Offices and Banks, Parking Garage, Sports and Recreation, Transportation and Warehouses
Included
Lamp
