EATON VMV5LJ/UNV1

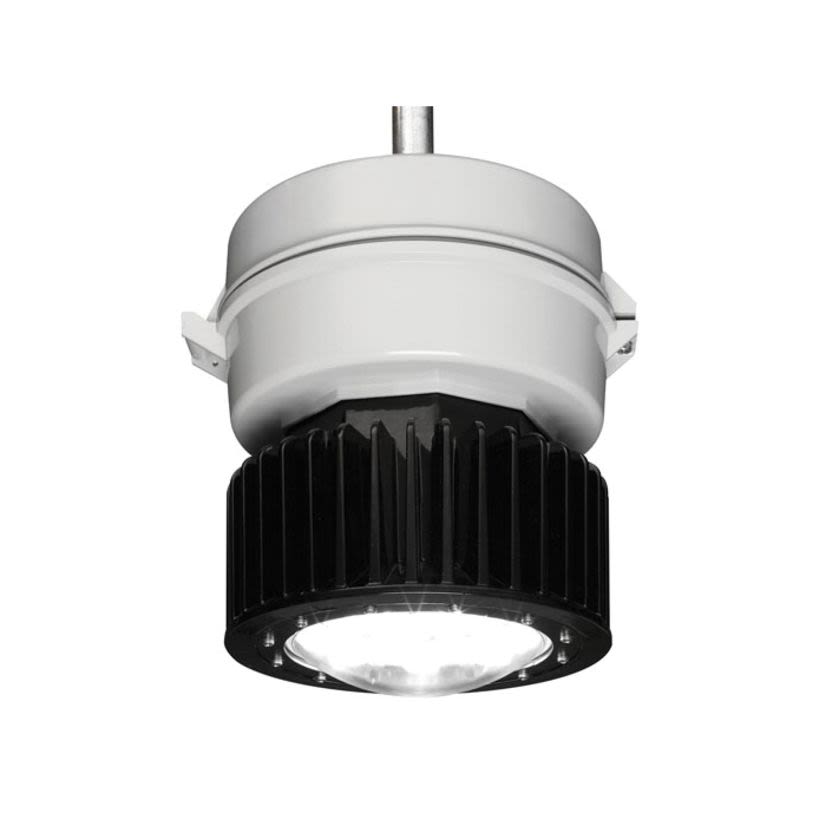

Crouse-Hinds VMV5LJ/UNV1 VMV Explosionproof Luminaire, LED Lamp, 43 W Fixture, 120 to 277 VAC, Corro-Free Epoxy Powder Coated Housing
EATON VMV5LJ/UNV1
Crouse-Hinds VMV5LJ/UNV1 VMV Explosionproof Luminaire, LED Lamp, 43 W Fixture, 120 to 277 VAC, Corro-Free Epoxy Powder Coated HousingNon-stock product. Available to order - lead time may vary.
BrandEATON
MFG #VMV5LJ/UNV1
Werner Part #4101254
UPC662276373068
Non-stock product. Available to order - lead time may vary.
BrandEATON
MFG #VMV5LJ/UNV1
Werner Part #4101254
UPC662276373068
Product Description
Crouse-Hinds Explosionproof Luminaire, Series: VMV, 120 to 277 VAC, 43 W Fixture, 0.35 to 0.16 A, LED Lamp, White Light, 5000 K Color Temperature, 70 CRI, Glass Lens, 5335 Lumens Lumens, IP66 Enclosure, Stanchion Mounting, Die Cast Aluminum Housing Material, Corro-Free Epoxy Powder Coated Housing Finish, 10.78 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Color Rendering Index (CRI)70
Color Temperature5000 K
Country of OriginUS
Diameter3-3/4 in
Dimensions10.78 in H
Enclosure TypeIP66
Fixture Wattage43 W
Housing FinishCorro-Free Epoxy Powder Coated
Housing MaterialDie Cast Aluminum
Lamp Base TypeMedium
Lamp TypeLED
Lamp Wattage150 W
Lens TypeGlass
Light ColorWhite
Lumen5335 Lumens
ManufacturerEaton
Number of Lamps1
Package Height1 in
Package Length1 in
Package TypeEACH
Package Weight24.18 lb
Package Width1 in
SeriesVMV
TypeLine Voltage
Voltage Rating120 to 277 V AC
Documents
Applications
Oil and Gas Refineries, Drilling Rigs, Petrochemical Facilities, Food and Beverage Facilities, Platforms, Loading Docks, Tunnels, Indoor and Outdoor Spotlighting, Outdoor Wall and Stanchion Mounted General Area Lighting and Where Flammable Vapors, Gases, Ignitable Dusts, Fibers or Flyings are Present, Harsh and Hazardous Areas Applications
Warranty
5 Years
Features
- Instant illumination and restrike
- Cold temperature operation/no warm-up required
- Easy installation compact modular fixture attaches onto existing Champ mounting module
- Energy efficient technology up to 64% energy savings over HID fixtures
- Contains no mercury or other hazardous substances
- Shock and vibration resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
- 5 years fixture warranty
- Type V optic
- Ideal for pendant, ceiling or stanchion mount overhead building mounts, processing mills, industrial plants, large buildings, warehouses
- -40 to 65 deg C ambient temperature
- Heat and impact resistant glass lens
- Silicone gaskets, stainless steel external hardware
- >0.9 power factor
- 124 Lumens/W
- 25 deg angled 1-1/2 in stanchion mounted
