EATON EVLL11LC0/UNV1

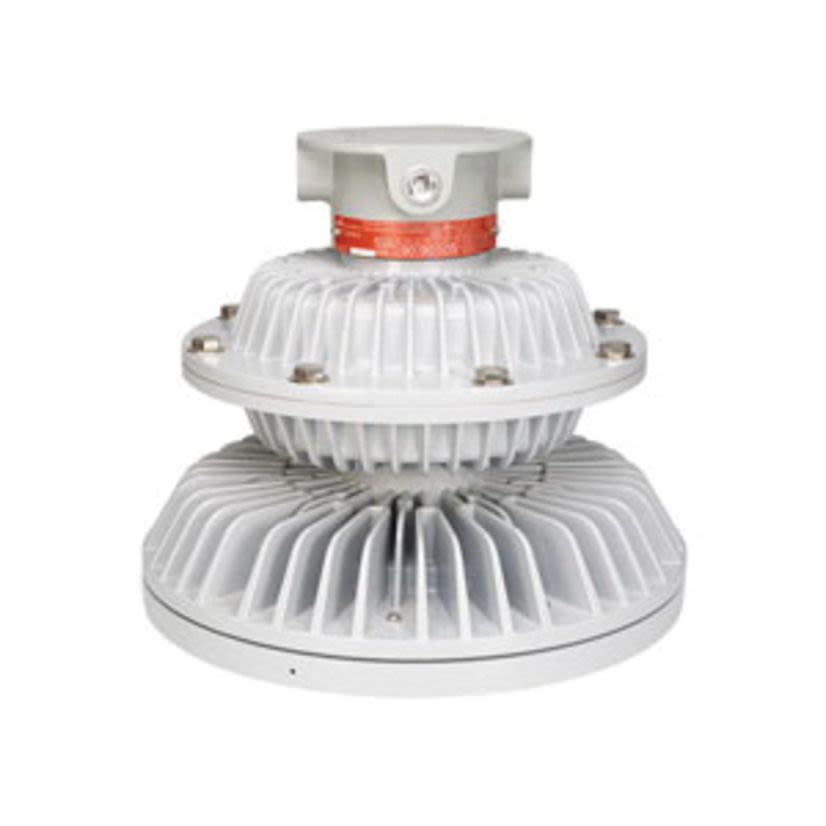

EATON Hazard-Gard EVLL11LC0/UNV1 Explosionproof Luminaire,) LED Lamp, 112 W Fixture, 120 to 277 VAC/108 to 250 VDC, Corro-Free Epoxy Powder Coated Housing
EATON EVLL11LC0/UNV1
EATON Hazard-Gard EVLL11LC0/UNV1 Explosionproof Luminaire,) LED Lamp, 112 W Fixture, 120 to 277 VAC/108 to 250 VDC, Corro-Free Epoxy Powder Coated HousingNon-stock product. Available to order - lead time may vary.
BrandEATON
MFG #EVLL11LC0/UNV1
Werner Part #4180773
UPC662276286306
Non-stock product. Available to order - lead time may vary.
BrandEATON
MFG #EVLL11LC0/UNV1
Werner Part #4180773
UPC662276286306
Product Description
EATON Hazard-Gard Luminaire, Explosionproof, Series: EVLL, 120 to 277 VAC/108 to 250 VDC, 112 W Fixture, 0.73 to 1.71 A, LED Lamp, 112 W Lamp, 60000 hr Average Life, White Light, 5000 K Color Temperature, 70 CRI, Glass Lens, 10500 Lumens, NEMA 4X/IP66 Enclosure, Copper-Free Aluminum Housing Material, Corro-Free Epoxy Powder Coated Housing Finish
Attributes
Documents
Applications
Warranty
Features
Attributes
Average Life60000 hr
Ceiling Opening6-1/2 in
Color Rendering Index (CRI)70
Color Temperature5000 K
Country of OriginUS
Diameter6 in
Enclosure TypeNEMA 4X/IP66
Fixture Wattage112 W
Housing FinishCorro-Free Epoxy Powder Coated
Housing MaterialCopper-Free Aluminum
Insulation TypeIC
Lamp TypeLED
Lamp Wattage112 W
Lens TypeGlass
Light ColorWhite
Lumen10500 Lumens
ManufacturerEaton
Mounting TypeCeiling
Number of Lamps1
Package Height15.9 in
Package Length15.9 in
Package TypeEACH
Package Weight60.15 lb
Package Width11.97 in
SeriesEVLL
Suitable For Use WithHalo Recessed Downlight Fixture
TypeExplosionproof
Type / StyleGroup B Rated
Voltage Rating120 to 277 V AC/108 to 250 V DC
Documents
Applications
Industrial Facilities, Factories Facility, Lighting and Lighting Controls, Oil and Gas Refineries, Drilling Rigs, Petrochemical Facilities, Food and Beverage Facilities, Platforms, Loading Docks, Tunnels, Indoor and Outdoor Spotlighting, Outdoor Wall and Stanchion Mounted General Area Lighting and where Flammable Vapors, Gases, Ignitable Dusts, Fibers or Flyings are Present, Harsh and Hazardous Areas Applications
Warranty
5 Years
Features
- QuickConnect design install and wire the mounting module, then simply screw in the luminaire
- Factory sealed, no external seals required
- Energy efficient up to 62% reduction in energy used versus equivalent HID fixtures
- 60000 hr rated life eliminates need for frequent lamp replacement
- Shock and vibration resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
- T5 temperature rating
- Shatter resistant, explosionproof glass lens, silicone gaskets, stainless steel external hardware
- -25 to 55 deg C ambient operating temperature
- >0.95 power factor
- Glass lens
