EATON EVLEDC701

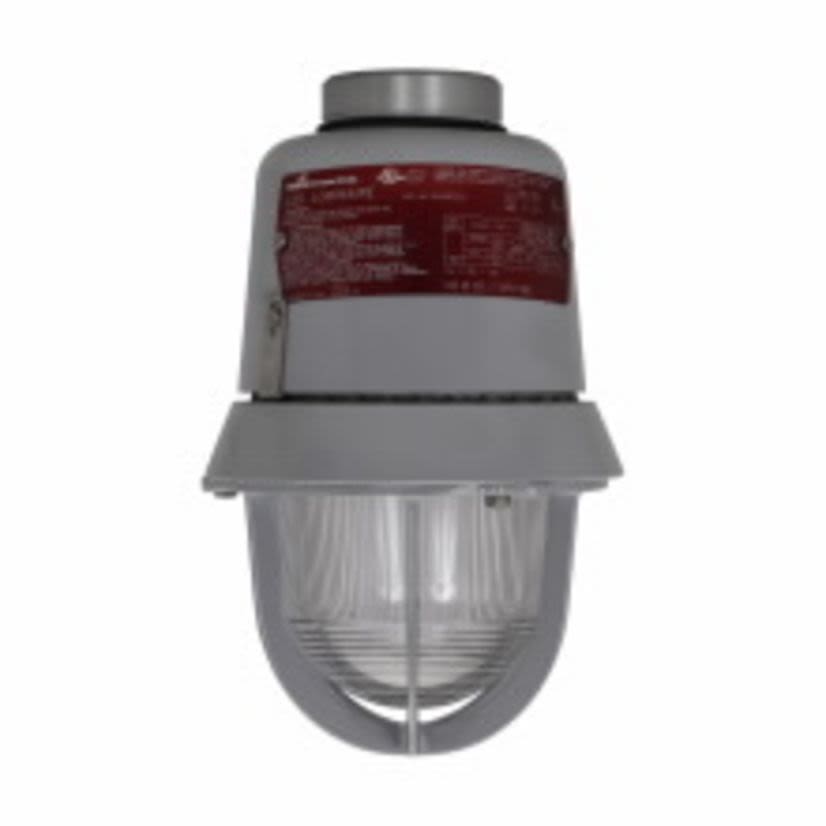

EATON EVLEDC701 Explosionproof Luminaire,) LED Lamp, 36 W Fixture, 100 to 277 VAC, Corro-Free Epoxy Powder Coated Housing
EATON EVLEDC701
EATON EVLEDC701 Explosionproof Luminaire,) LED Lamp, 36 W Fixture, 100 to 277 VAC, Corro-Free Epoxy Powder Coated HousingInventory Not Available
Inventory Not Available
Product Description
EATON Luminaire, Explosionproof, Series: EV LED, 100 to 277 VAC, 36 W Fixture, 0.36 A, LED Lamp, 50000 hr Average Life, 5600 K Color Temperature, 65 CRI, 1670 Lumens, IP66 Enclosure, Copper-Free Aluminum Housing Material, Corro-Free Epoxy Powder Coated Housing Finish
Attributes
Documents
Applications
Features
Attributes
Average Life50000 hr
Ceiling Opening6-1/2 in
Color Rendering Index (CRI)65
Color Temperature5600 K
Country of OriginUS
Diameter6 in
Enclosure TypeIP66
Fixture Wattage36 W
Housing FinishCorro-Free Epoxy Powder Coated
Housing MaterialCopper-Free Aluminum
Insulation TypeIC
Lamp TypeLED
Lumen1670 Lumens
ManufacturerEaton
Mounting TypeCeiling
Number of Lamps1
SeriesEV LED
Suitable For Use WithHalo General Purpose Downlight
TypeExplosionproof
Voltage Rating100 to 277 V AC
Documents
Applications
Industrial Facilities, Factories Facility, Lighting and Lighting Controls, Manufacturing Plants, Heavy Industrial, Chemical, Petrochemical or Pharmaceutical Facilities, Platforms, Loading Docks, Tunnels, Outdoor Wall and Stanchion Mounted General Area Lighting Applications
Features
- Instant illumination and restrike
- Better visibility with crisp, white light
- T6 temperature rating safely operate in the most hazardous environments
- Cold temperature operation, no warm-up time required
- Easy installation - compact modular fixture attaches onto existing Champ mounting module
- Energy efficient up to 85% reduction in energy used
- Provides up to 50000 hr rated life eliminates need for frequent lamp replacement
- Contains no mercury or other hazardous substances
- Shock and vibration resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
- -30 to 55 deg C (AC), -30 to 40 deg C (DC) ambient operating temperature
- Heat and impact-resistant glass globe, silicone gaskets and stainless steel external hardware
- 0.99 power factor
