RAB ALED5T78N
RAB ALED5T78N ALED Type V Light Distribution Area Lighting, 90 W Fixture, 120/208/240/277 V AC, Bronze Housing
RAB ALED5T78N
RAB ALED5T78N ALED Type V Light Distribution Area Lighting, 90 W Fixture, 120/208/240/277 V AC, Bronze HousingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
RAB Area Lighting, Type V Light Distribution, Series: ALED, 120/208/240/277 V AC, 90 W Fixture, 0.74/0.47/0.41/0.35 A, 78 W Lamp, 100000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 73 CRI, Class 2/Constant Current Ballast, Clear Tempered Glass Lens, 3505 Lumens, IP66 Enclosure, Arm Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 16 in Dia x 22-1/2 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Average Life100000 hr
Ballast TypeClass 2/Constant Current
ColorBlack
Color Rendering Index (CRI)73
Color Temperature4000 K
Country of OriginCN

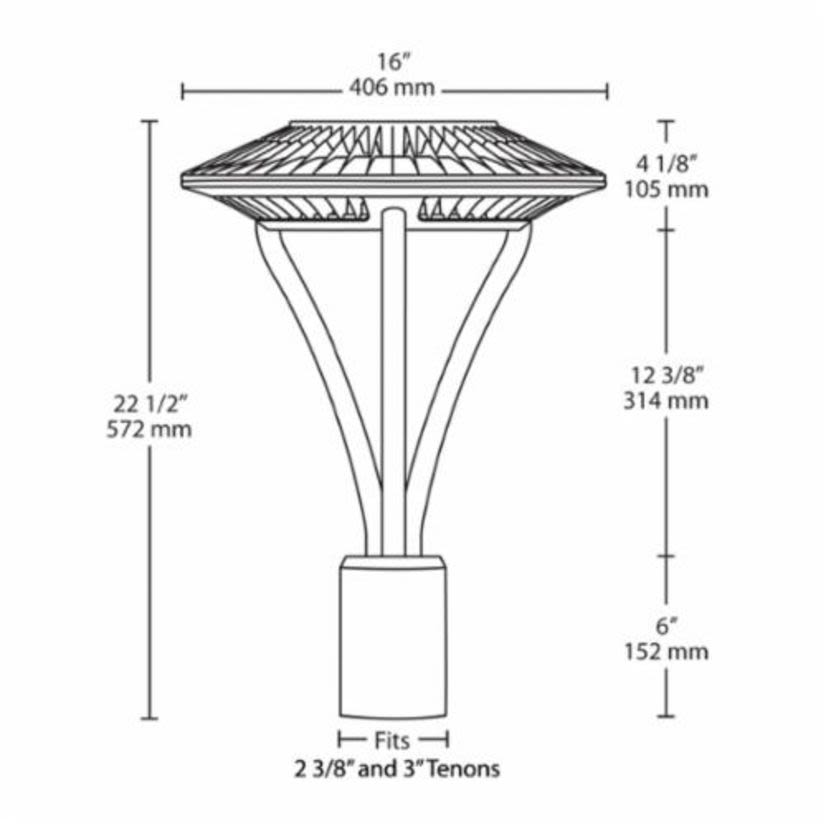

Dimensions16 in Dia x 22-1/2 in H
Enclosure TypeIP66
Fixture Wattage90 W
Housing FinishBronze
Housing MaterialDie Cast Aluminum
Lamp TypeLED
Lamp Wattage78 W
Lens TypeClear Tempered Glass
Light ColorNeutral White
Lumen3505 Lumens
ManufacturerRAB Lighting
MaterialPlastic
Package TypeEACH
SeriesALED
Suitable For Use WithKichler Lighting System, All Plus, Contractor, Professional Series Transformer and 12 VDC Landscape Lighting
TypeType V Light Distribution
Type / StyleType V Light Distribution
Voltage Rating120/208/240/277 V AC
Applications
Wet Locations and Outdoor Applications
Warranty
5 years
Features
- High temperature silicone gaskets
- Suitable for use in 40 deg C ambient temperature
- Compatible with standard 2-3/8 to 3 in tenons
- Airflow fins for maximum heat dissipation
