RAB BLEDR24
RAB BLEDR24 Round Bollard Light,) LED Lamp, 23 W Fixture, 120/208/240/277 V AC, Bronze/Polyester Powder Coated Housing
RAB BLEDR24
RAB BLEDR24 Round Bollard Light,) LED Lamp, 23 W Fixture, 120/208/240/277 V AC, Bronze/Polyester Powder Coated HousingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
RAB Bollard Light, Round, Series: BLED, 120/208/240/277 V AC, 23 W Fixture, 0.26/0.18/0.15/0.14 A, 360 deg Lighting Pattern Lighting Technology, LED Lamp, 24 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 74 CRI, Class 2/Constant Current Ballast, Polycarbonate Lens, 1652 Lumens, Bolt Mounting, Die Cast Aluminum Housing Material, Bronze/Polyester Powder Coated Housing Finish, 6-1/2 in L x 6-1/2 in W x 42 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Average Life100000 hr
Ballast TypeClass 2/Constant Current
Color Rendering Index (CRI)74
Color Temperature5000 K
Country of OriginCN

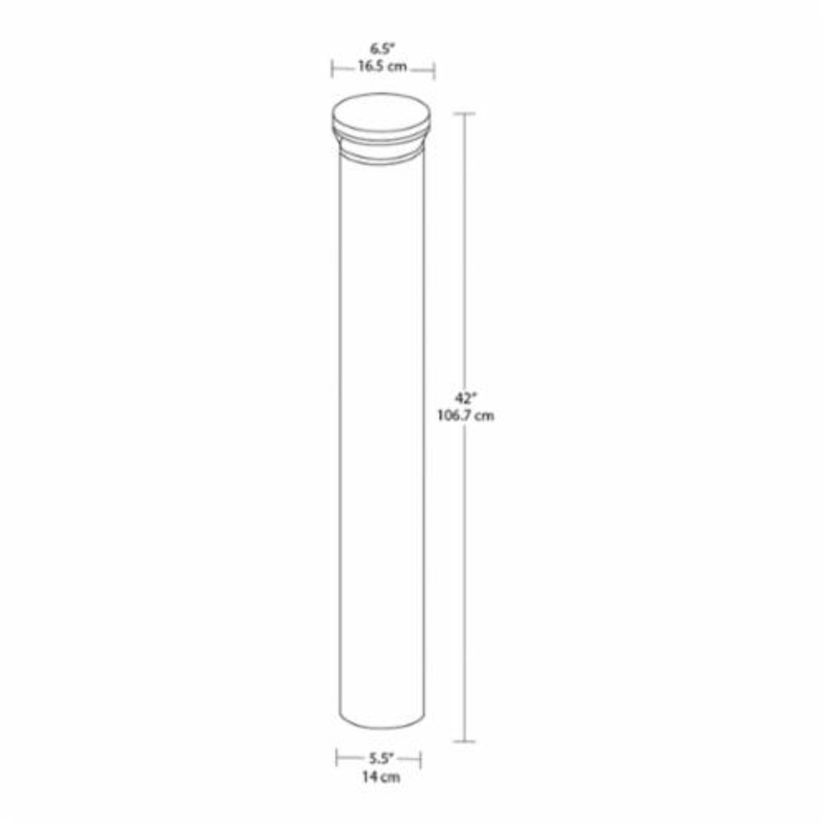

Dimensions6-1/2 in L x 6-1/2 in W x 42 in H
Fixture Wattage23 W
Housing FinishBronze/Polyester Powder Coated
Housing MaterialDie Cast Aluminum
Lamp TypeLED
Lamp Wattage24 W
Lens TypePolycarbonate
Light ColorCool White
Lumen1652 Lumens
ManufacturerRAB Lighting
Material22 ga Cold Rolled Steel
SeriesBLED
Suitable For Use WithCPX Panels
TypeRound
Type / StyleRound
Voltage Rating120/208/240/277 V AC
Documents
Applications
Wet Locations and Outdoor Applications
Warranty
5 years
Features
- Outdoor base mount design for super sturdy installation
- Durable construction and vandal-resistant polycarbonate lens
- 3 configurations to provide 360 deg, 270 deg, 180 deg or 90 deg lighting pattern
- Precision engineered optics deliver maximum downward lighting without glare
- Clear, vandal-resistant polycarbonate lens
- Suitable for use in 104 deg F ambient temperature
- High temperature silicone gaskets seal out moisture
- Four anchor bolts provided for concrete pad mounting
- Internal base support has leveling screws
- Constant current bulb spacing
Specifications
Lighting Technology: 360 deg Lighting Pattern
