Lithonia Lighting ELA T QWP L0309 M12

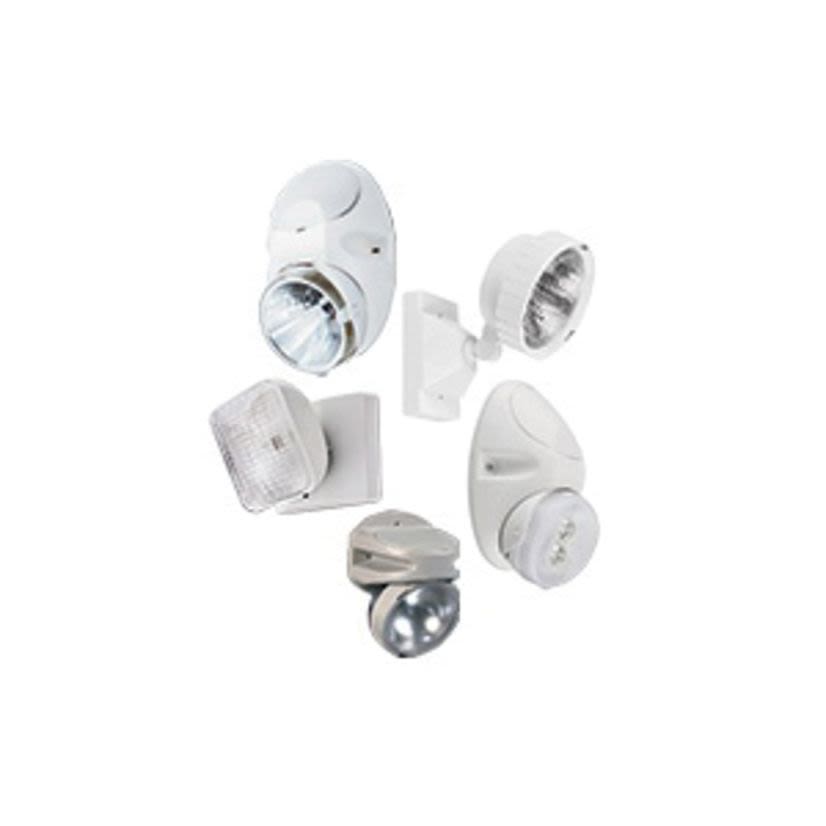

Lithonia Lighting QUANTUM ELA T QWP L0309 M12 Twin Face Remote Emergency Light, 1.5 W Lamp, 9.6 VAC, 2 Heads
Lithonia Lighting ELA T QWP L0309 M12
Lithonia Lighting QUANTUM ELA T QWP L0309 M12 Twin Face Remote Emergency Light, 1.5 W Lamp, 9.6 VAC, 2 HeadsNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #ELA T QWP L0309 M12
Werner Part #4012315
UPC745972707297
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #ELA T QWP L0309 M12
Werner Part #4012315
UPC745972707297
Product Description
Lithonia Lighting QUANTUM Remote Emergency Light, Twin Face, Series: ELA, 9.6 VAC, 1.5 W Lamp, 2 Heads, 10 years Average Life, Single Gang Switch Box Mounting, 5-3/4 in H x 8-1/2 in W Dimensions, Thermoplastic, White
Attributes
Documents
Applications
Warranty
Features
Attributes
Average Life10 years
Ballast Type0 to 10 VDC Dimming
ColorWhite
Color Rendering Index (CRI)85
Color Temperature3500 K
Country of OriginCN
Dimensions5-3/4 in H x 8-1/2 in W
Fixture Wattage38 W
Housing MaterialAluminum
Lamp TypeLED
Lamp Wattage1.5 W
Lens TypeAcrylic
Lumen4800 Lumens
ManufacturerAcuity Brands
MaterialThermoplastic
Mounting TypeCeiling
Number of Lamps1
Package TypeEACH
SeriesELA
TypeTwin Face
Type / StyleTwin Face
Voltage Rating9.6 V AC
Documents
Applications
Emergency and Safety Applications
Warranty
Limited
Features
- To be powered by Quantum LED series unit or combo with high output option as part of an emergency lighting system providing light for the path of egress
- Remote lamp head matches the appearance of the quantum LED series family units
- Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate
- Fully adjustable lamp heads to meet all aiming requirements, strong, compact and corrosion resistant with a UL94V-O flame rating
- Constructed of UV-stabilized thermoplastic that resists discoloration by natural or artificial sunlight
- Outdoor remotes (QWP) are standard gray cast aluminum, sealed and gasketed
- For use in damp and wet location areas
- Lamp housing snaps off for easy lamp replacement
- The typical life of the exit LED lamp is 10 years
- Mounting base for use with single- or twin head applications
- Quantum LED series adjustable lamp head, weather-proof, cast aluminum fixture
- Wet location listed ELA QWP -10 to 50 deg C
