Intermatic LC4536LAC

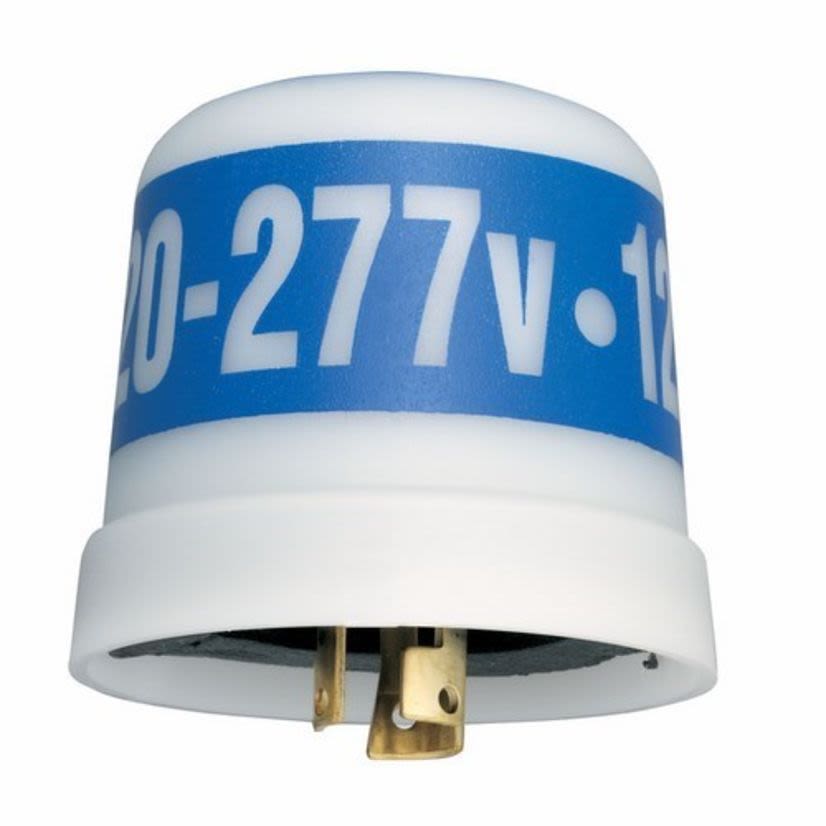

Intermatic LC4536LAC LC4500 Locking Mounting Thermal Photocontrol, 120 to 277 V AC, 1800 to 4155 W Tungsten, 1000 to 2290 VA Ballast, Fixture Mount, Polypropylene
Intermatic LC4536LAC
Intermatic LC4536LAC LC4500 Locking Mounting Thermal Photocontrol, 120 to 277 V AC, 1800 to 4155 W Tungsten, 1000 to 2290 VA Ballast, Fixture Mount, PolypropyleneNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Intermatic Thermal Photocontrol, Locking Mounting, Series: LC4500, 120 to 277 V AC, 15 A, 50/60 Hz Frequency, 1800 to 4155 W Tungsten, 1000 to 2290 VA Ballast, SPST Contact Form, Spark Gap Arrester, 30 to 90 s Timing, Cadmium Sulfide Sensor, 0.5 FC ON, 15 FC OFF Sensitivity, Environmental Conditions: -20 to 104 deg F, 3650 Cycles Operating Cycles, Fixture Mounting, Polypropylene, Blue/White, 3 in Dia x 2-3/4 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Ballast Load1000 to 2290 VA
ColorBlue/White
Contact FormSPST
Country of OriginMX
Dimensions3 in Dia x 2-3/4 in H
Environmental Conditions-20 to 104 deg F
Frequency Rating50/60 Hz
ManufacturerIntermatic
MaterialPolypropylene
Mounting TypeTwist-Lock
Package TypeEACH
Sensitivity0.5 FC ON, 15 FC OFF
Sensor TypeCadmium Sulfide
SeriesLC4500
Tungsten Rating1800 to 4155 W
TypeLocking Mounting
Type / StyleLocking Mounting
Voltage Rating120 to 277 V AC
Applications
For dusk-to-dawn lighting control
Warranty
2 Years Limited
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Integral high impact thermoplastic housing
- Locking type plug for quick installation and changeover
- Delay feature prevents unwanted OFF switching
Specifications
- Timing Range: 30 to 90 s
- Arrester: Spark Gap
