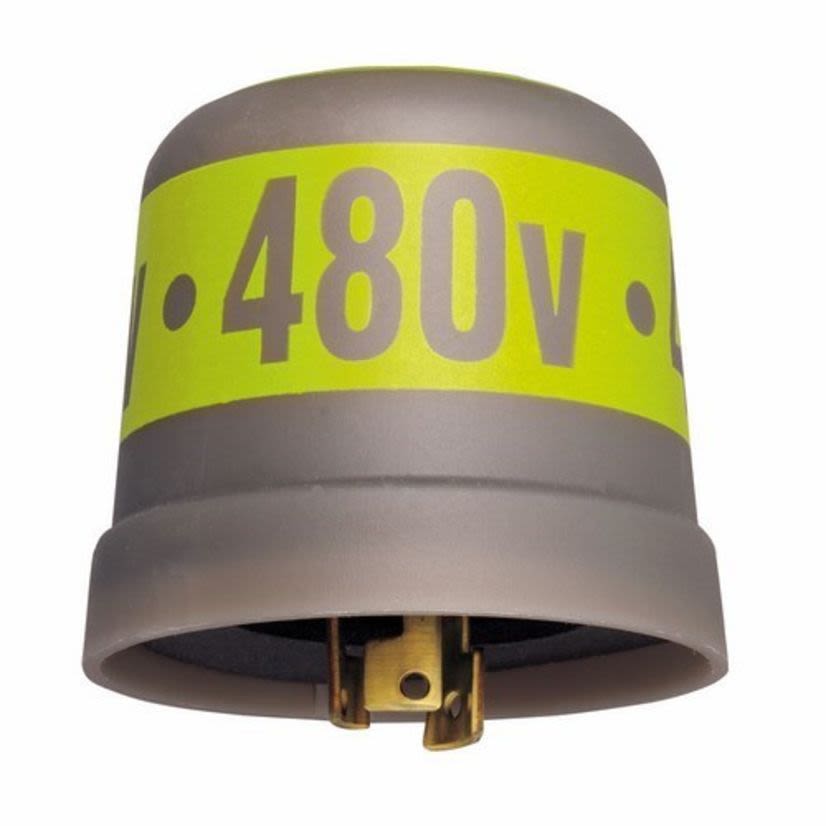

Intermatic LC4535
Intermatic LC4535 LC4500 Locking Mounting Thermal Photocontrol, 480 V AC, 7200 W Tungsten, 4000 VA Ballast, Fixture Mount, Polypropylene
Intermatic LC4535
Intermatic LC4535 LC4500 Locking Mounting Thermal Photocontrol, 480 V AC, 7200 W Tungsten, 4000 VA Ballast, Fixture Mount, PolypropyleneNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Intermatic Thermal Photocontrol, Locking Mounting, Series: LC4500, 480 V AC, 15 A, 50/60 Hz Frequency, 7200 W Tungsten, 4000 VA Ballast, Spark Gap Arrester, 30 to 90 s Timing, Cadmium Sulfide Sensor, 0.5 FC ON, 15 FC OFF Sensitivity, Environmental Conditions: -20 to 104 deg F, 3650 Cycles Operating Cycles, Fixture Mounting, Polypropylene, Gray/Yellow, 3 in Dia x 2-3/4 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Ballast Load4000 VA
ColorGray/Yellow
Country of OriginMX
Dimensions3 in Dia x 2-3/4 in H
Environmental Conditions-20 to 104 deg F
Frequency Rating50/60 Hz
ManufacturerIntermatic
MaterialPolypropylene
Mounting TypeTwist-Lock
Package TypeEACH
Sensitivity0.5 FC ON, 15 FC OFF
Sensor TypeCadmium Sulfide
SeriesLC4500
Tungsten Rating7200 W
TypeLocking Mounting
Type / StyleLocking Mounting
Voltage Rating480 V AC
Applications
For dusk-to-dawn lighting control
Warranty
2 Years Limited
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Integral high impact thermoplastic housing
- Locking type plug for quick installation and changeover
- Delay feature prevents unwanted OFF switching
Specifications
- Timing Range: 30 to 90 s
- Arrester: Spark Gap
