Intermatic K4121C

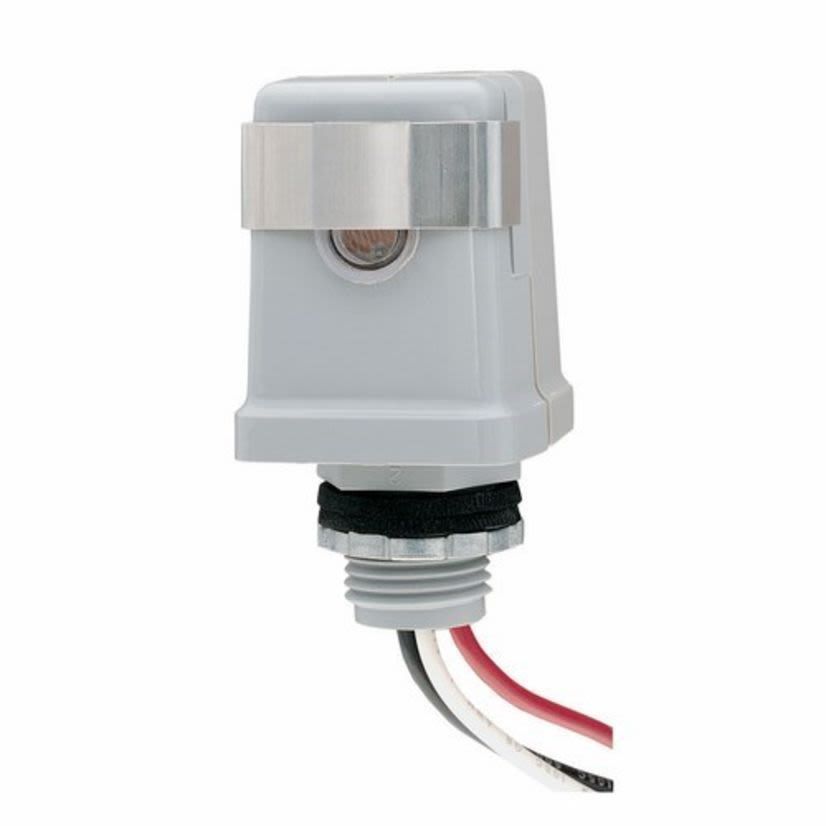

Intermatic K4121C K4100 Stem Mounting Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box/Fixture Mount, Polycarbonate
Intermatic K4121C
Intermatic K4121C K4100 Stem Mounting Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box/Fixture Mount, PolycarbonateIn Stock: 4more info
|
BrandIntermatic
MFG #K4121C
Werner Part #41672
UPC078275002012
In Stock: 4more info
|
BrandIntermatic
MFG #K4121C
Werner Part #41672
UPC078275002012
Product Description
Intermatic Stem Mounting Photocontrol, Series: K4100, 120 V AC, 15/8.3 A, 50/60 Hz, 1800 W Tungsten, 1000 VA Ballast, SPST, 30 to 90 s, 18 AWG Wire, Thermal/Cadmium Sulfide Sensor, 1 to 5 FC ON/3 to 15 FC OFF, Environmental Conditions: -40 to 158 deg F Operating Temperature, Stem Mount, Polycarbonate, Gray, 1-9/16 in L x 1-9/16 in W x 3 in H
Attributes
Documents
Applications
Features
Specifications
Attributes
Ballast Load1000 VA
ColorGray
Contact FormSPST
Country of OriginMX
Dimensions1-9/16 in L x 1-9/16 in W x 3 in H
Environmental Conditions-40 to 158 deg F Operating Temperature
Frequency Rating50/60 Hz
ManufacturerIntermatic
MaterialPolycarbonate
Mounting TypeStem
Package Height4.88 in
Package Length3 in
Package TypeEACH
Package Weight0.24 lb
Package Width1.8 IN
Sensitivity1 to 5 FC ON/3 to 15 FC OFF
Sensor TypeThermal/Cadmium Sulfide
SeriesK4100
Tungsten Rating1800 W
Type / StyleThermal Type Photo Cell
Voltage Rating120 V AC
Applications
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Delay feature prevents unwanted OFF switching
- Gray plastic housing
- 1/2 in-14 NPSM threaded stem
Specifications
Timing Range: 30 to 90 s
