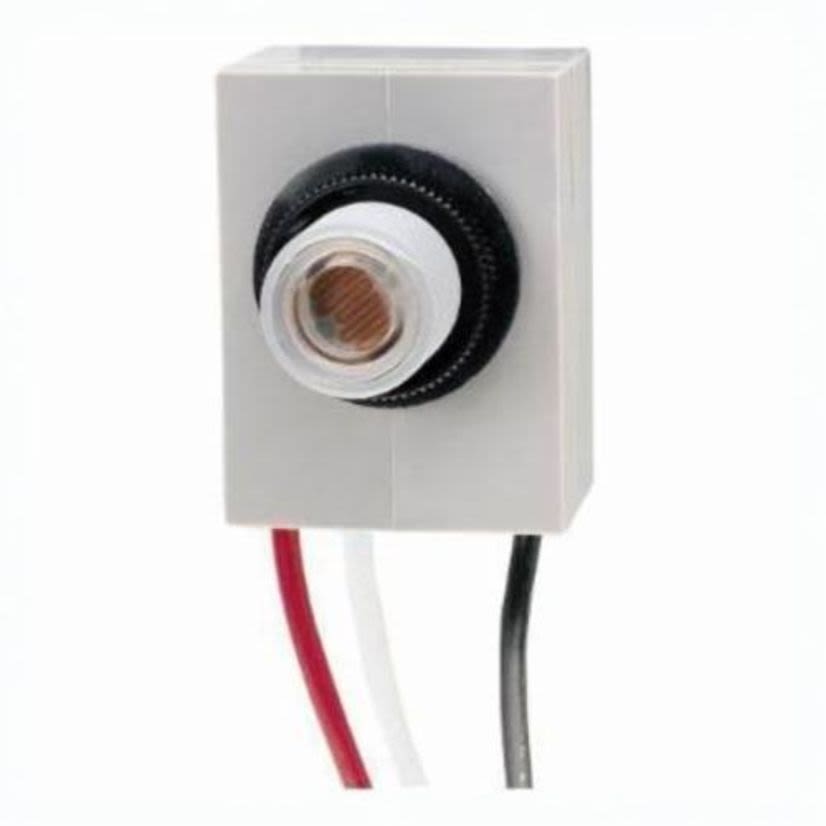

Intermatic K4023C
Intermatic K4023C K4000 Thermal Housing Photocontrol, 208 to 277 V AC, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, Box/Fixture Mount, Polycarbonate
Intermatic K4023C
Intermatic K4023C K4000 Thermal Housing Photocontrol, 208 to 277 V AC, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, Box/Fixture Mount, PolycarbonateIn Stock: 8more info
|
BrandIntermatic
MFG #K4023C
Werner Part #41670
UPC078275029576
In Stock: 8more info
|
BrandIntermatic
MFG #K4023C
Werner Part #41670
UPC078275029576
Product Description
Intermatic Housing Photocontrol, Thermal, Series: K4000, 208 to 277 V AC, 15 A, 50/60 Hz, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, SPST, 30 to 90 s, 18 AWG Wire, 1 to 5 FC ON/3 to 15 FC OFF, Environmental Conditions: -40 to 158 deg F, Box/Fixture Mount, Polycarbonate, Gray, 46 mm H x 23.8 mm W x 20.6 mm D
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
Ballast Load1700 to 2300 VA
ColorGray
Contact FormSPST
Country of OriginMX
Dimensions46 mm H x 23.8 mm W x 20.6 mm D
Environmental Conditions-40 to 158 deg F
Frequency Rating50/60 Hz
ManufacturerIntermatic
MaterialPolycarbonate
Mounting TypeFlush
Package Height4.88 in
Package Length3 in
Package TypeEACH
Package Weight0.18 lb
Package Width1.8 IN
Sensitivity1 to 5 FC ON/3 to 15 FC OFF
SeriesK4000
Tungsten Rating3100 to 4150 W
TypeThermal
Type / StyleThermal
Voltage Rating208 to 277 V AC
Applications
For dusk-to-dawn lighting control
Included
Weatherproof Wall Plate, Neoprene Gasket
Warranty
2 Years
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
- Delay feature prevents unwanted OFF switching
- 3/8 in-18 NPSM, 3/4 in long stem with locking nut and washer gasket
Specifications
Timing Range: 30 to 90 s
