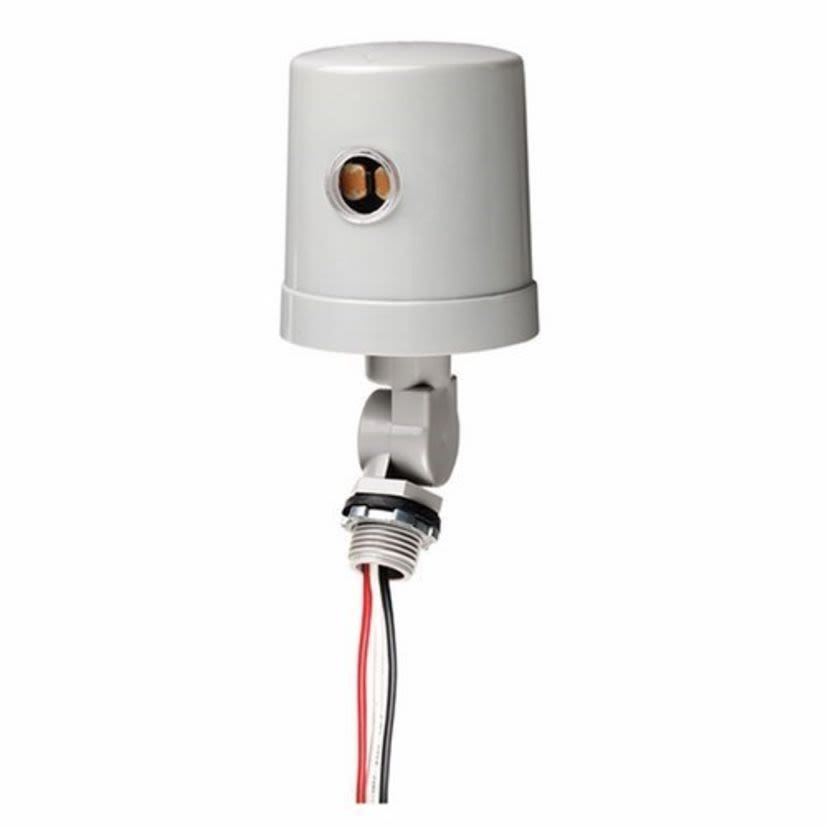

Intermatic K4236C
Intermatic K4236C K4200 Stem and Swivel Mounting Photocontrol, 120 to 277 V AC, 1800 to 4150 W Tungsten, 1000 to 2300 VA Ballast, Box/Fixture Mount, Polycarbonate
Intermatic K4236C
Intermatic K4236C K4200 Stem and Swivel Mounting Photocontrol, 120 to 277 V AC, 1800 to 4150 W Tungsten, 1000 to 2300 VA Ballast, Box/Fixture Mount, PolycarbonateNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Intermatic Stem and Swivel Mounting Photocontrol, Series: K4200, 120 to 277 V AC, 15/8.3 A, 50/60 Hz Frequency, 1800 to 4150 W Tungsten, 1000 to 2300 VA Ballast, SPST Contact Form, 18 AWG Wire, Thermal Photo Control/Cadmium Sulfide Sensor, 1 to 5 fc Turn On/3 to 15 fc Turn Off Sensitivity, Environmental Conditions: -40 to 158 deg F Operating Temperature, Box/Fixture Mounting, Polycarbonate, Gray, 3 in Dia x 6-1/4 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Ballast Load1000 to 2300 VA
ColorGray
Contact FormSPST
Country of OriginMX
Dimensions3 in Dia x 6-1/4 in H
Environmental Conditions-40 to 158 deg F Operating Temperature
Frequency Rating50/60 Hz
ManufacturerIntermatic
MaterialPolycarbonate
Mounting TypeStem
Package TypeEACH
Sensitivity1 to 5 fc Turn On/3 to 15 fc Turn Off
Sensor TypeThermal Photo Control/Cadmium Sulfide
SeriesK4200
Tungsten Rating1800 to 4150 W
Type / StyleThermal Type Photo Cell
Voltage Rating120 to 277 V AC
Applications
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Delay feature prevents unwanted OFF switching
- High strength, UV resistant plastic housing
- Swivel with 1/2 in-14 NPSM threaded stem
Specifications
Timing Range: Dusk On - Dawn OFF
