Intermatic K4235

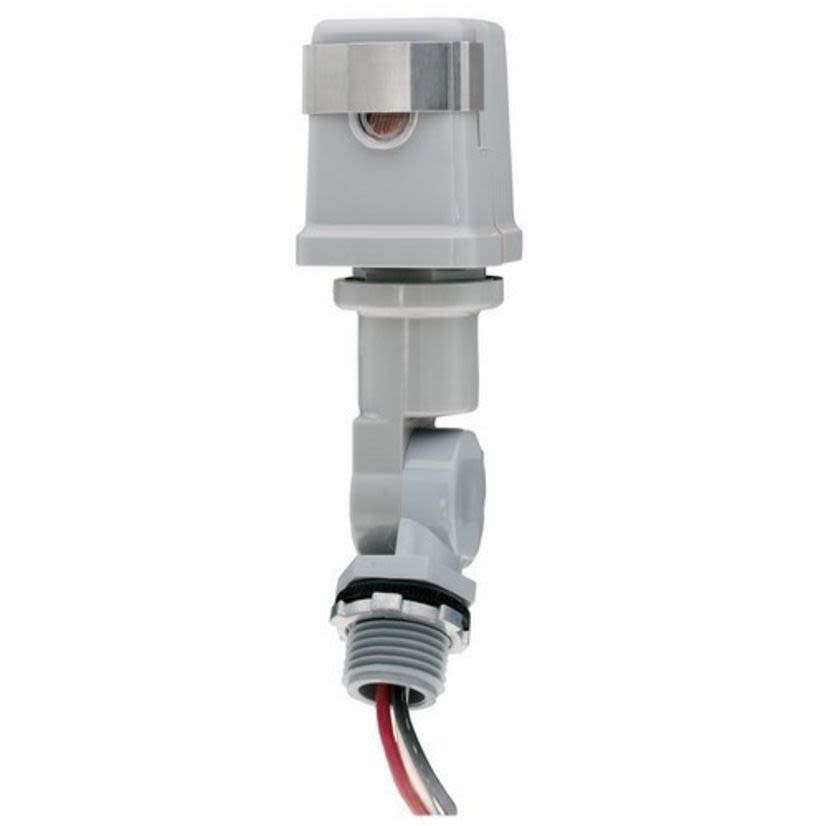

Intermatic K4235 K4200 Stem and Swivel Mounting Photocontrol, 480 V AC, 7200 W Tungsten, 4000 VA Ballast, Box/Fixture Mount, Polycarbonate
Intermatic K4235
Intermatic K4235 K4200 Stem and Swivel Mounting Photocontrol, 480 V AC, 7200 W Tungsten, 4000 VA Ballast, Box/Fixture Mount, PolycarbonateNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Intermatic Stem and Swivel Mounting Photocontrol, Series: K4200, 480 V AC, 15/8.3 A, 50/60 Hz Frequency, 7200 W Tungsten, 4000 VA Ballast, 30 to 90 s Timing, 18 AWG Wire, Thermal Photo Control/Cadmium Sulfide Sensor, 1 to 5 fc Turn On/3 to 15 fc Turn Off Sensitivity, Environmental Conditions: -40 to 158 deg F Operating Temperature, Box/Fixture Mounting, Polycarbonate, Gray, 3 in Dia x 6-1/4 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Ballast Load4000 VA
ColorGray
Country of OriginMX
Dimensions3 in Dia x 6-1/4 in H
Environmental Conditions-40 to 158 deg F Operating Temperature
Frequency Rating50/60 Hz
ManufacturerIntermatic
MaterialPolycarbonate
Mounting TypeStem
Package TypeEACH
Sensitivity1 to 5 fc Turn On/3 to 15 fc Turn Off
Sensor TypeThermal Photo Control/Cadmium Sulfide
SeriesK4200
Tungsten Rating7200 W
Type / StyleThermal Type Photo Cell
Voltage Rating480 V AC
Documents
Applications
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications
Features
- 2 W power consumption
- Automatic switching source
- 6 in lead wire
- Provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lighting
- The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes
- 1/2-14 thread size
- Thermal type photo controls, which are available in single or multi-voltage models, provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lightning
- The thermal type controls feature a cadmium sulfide photocell and a sonic welded polycarbonate case and lens to seal out moisture
Specifications
Timing Range: 30 to 90 s
