NSi 2002

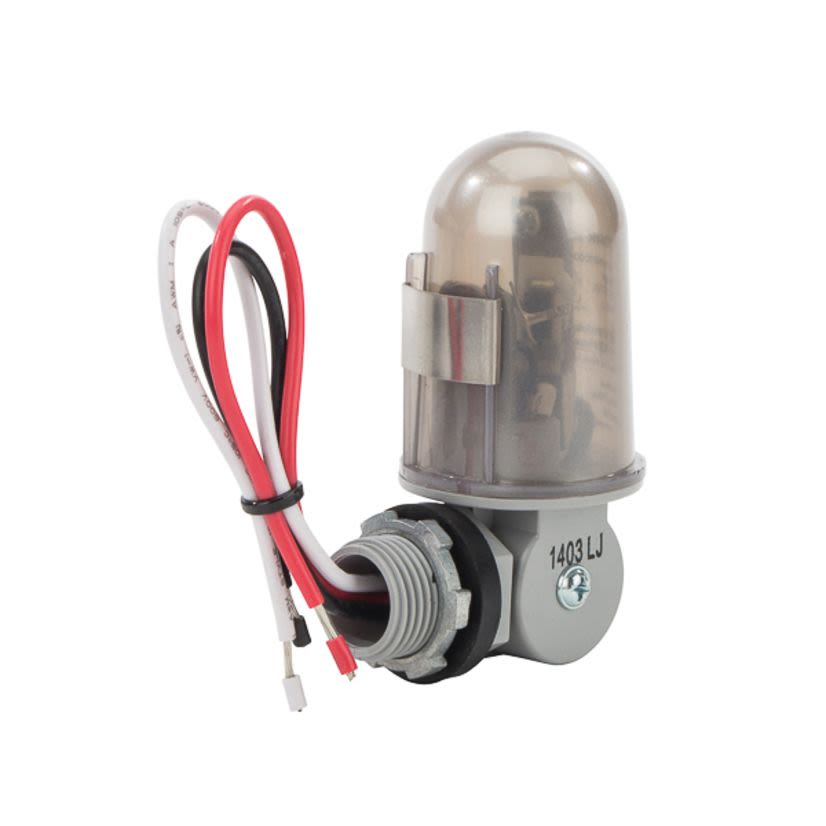

NSI Tork 2002 2001 Stem Photocontrol, 208 to 277 V AC, 3470 to 4620 W Tungsten, 2080 to 2770 VA Ballast, Lexan
NSi 2002
NSI Tork 2002 2001 Stem Photocontrol, 208 to 277 V AC, 3470 to 4620 W Tungsten, 2080 to 2770 VA Ballast, LexanOut of Stockmore info
|
BrandNSi
MFG #2002
Werner Part #3818213
UPC786261600165
Out of Stockmore info
|
BrandNSi
MFG #2002
Werner Part #3818213
UPC786261600165
Product Description
NSI Tork Photocontrol, Stem, Series: 2001, 208 to 277 V AC, 50/60 Hz Frequency, 3470 to 4620 W Tungsten, 2080 to 2770 VA Ballast, SPST Contact Form, 2 min Timing, 16 AWG Wire, Cadmium Sulfide Cell Sensor, 1 to 5 fc Turn On/3 to 15 fc Turn Off Sensitivity, Environmental Conditions: -40 to 140 deg F Operating Temperature, Lexan
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Ballast Load2080 to 2770 VA
Contact FormSPST
Country of OriginUS
Environmental Conditions-40 to 140 deg F Operating Temperature
Frequency Rating50/60 Hz
GTIN00786261600165
ManufacturerNSi Industries
MaterialLexan
Sensitivity1 to 5 fc Turn On/3 to 15 fc Turn Off
Sensor TypeCadmium Sulfide Cell
Series2001
Tungsten Rating3470 to 4620 W
TypeStem
Type / StyleStem
Voltage Rating208 to 277 V AC
Documents
Applications
Flood and Patio Lamp and Decorative Lighting
Warranty
5 Year
Features
- 1040 to1385 VA LED lamp rating
- 1/2 in Dia stem
- Under 1 W power consumption
- Conduit mount
- Delay of up to 2 min to prevent false switching due to light from passing vehicles, lightning
- All Lexan enclosures are impact and vandal resistant, translucent Lexan dome prolongs cell life by further screening out ultraviolet rays
- Dome and base are ultrasonically welded for maximum strength
- Remain closed between dusk and dawn contact
- Three color coded, minimum 6 in wire leads, rated for 105 deg C
- 180 deg swivel
Specifications
Timing Range: 2 min
