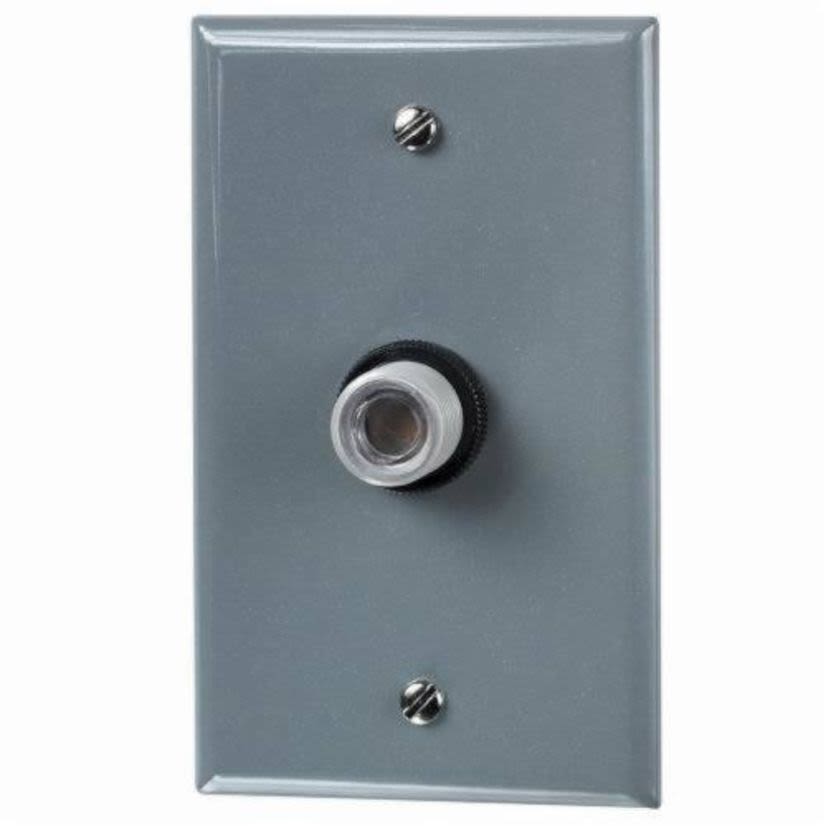

Intermatic K4321C
Intermatic K4321C K4000 Automatic Switching In-Wall Thermal Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box Mount, Polycarbonate
Intermatic K4321C
Intermatic K4321C K4000 Automatic Switching In-Wall Thermal Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box Mount, PolycarbonateIn Stock: 35more info
|
In Stock: 35more info
|
Product Description
Intermatic Thermal Photocontrol, Automatic Switching In-Wall, Series: K4000, 120 V AC, 8.3 A, 50/60 Hz, 1800 W Tungsten, 1000 VA Ballast, 30 to 90 s, 18 AWG Wire, Thermal Photo Control/Cadmium Sulfide Sensor, 1-5 FC On/3-15 FC Off, NEMA 3R, Environmental Conditions: -40 to 158 deg F Operating Temperature, Box Mount, Polycarbonate, Gray, 1-13/16 in L x 1-5/16 in W x 1-9/16 in D
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
Ballast Load1000 VA
ColorGray
Country of OriginMX
Dimensions1-13/16 in L x 1-5/16 in W x 1-9/16 in D
Enclosure TypeNEMA 3R
Environmental Conditions-40 to 158 deg F Operating Temperature
Frequency Rating50/60 Hz
ManufacturerIntermatic
MaterialPolycarbonate
Mounting TypeButton Fixed
Package TypeEACH
Sensitivity1-5 FC On/3-15 FC Off
Sensor TypeThermal Photo Control/Cadmium Sulfide
SeriesK4000
Tungsten Rating1800 W
TypeAutomatic Switching In-Wall
Type / StyleAutomatic Switching In-Wall
Voltage Rating120 V AC
Applications
Dusk to Dawn Lighting Control, Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway and Landscape Lighting Applications
Included
Weatherproof Wall Plate , Neoprene Gasket
Features
- Mechanical bimetal switch with cadmium sulfide photocell
- Delay feature prevents unwanted ON/OFF switching
- Fail ON Mode
Specifications
Timing Range: 30 to 90 s
