Intermatic K4253

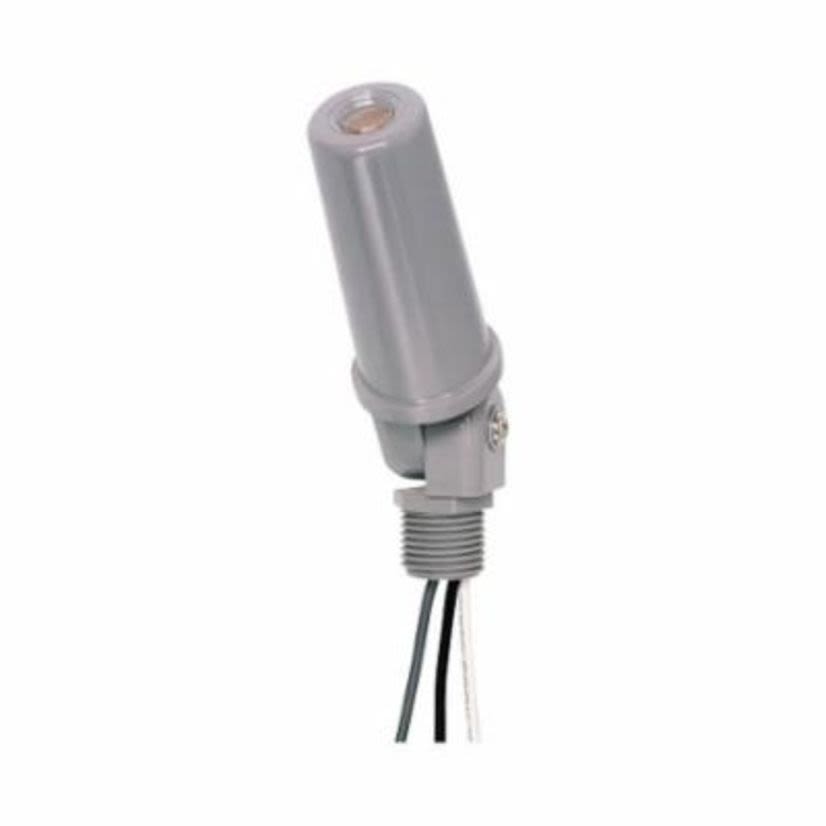

Intermatic K4253 K400 Thermal Photo Cell, 208 to 277 V AC, 15 A, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, Surface Mount, Polycarbonate
Intermatic K4253
Intermatic K4253 K400 Thermal Photo Cell, 208 to 277 V AC, 15 A, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, Surface Mount, PolycarbonateInventory Not Available
Inventory Not Available
Product Description
Intermatic Photo Cell, Thermal, Series: K400, 208 to 277 V AC, 50/60 Hz Frequency, 15 A, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, 18 AWG Wire, Cadmium Sulfide Sensor, 1 to 5 FC ON/3 to 15 FC OFF Sensitivity, Environmental Conditions: -40 to 158 deg F Operating Temperature, Surface Mounting, Polycarbonate, Gray, 1-3/8 in Dia x 4 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Ballast Load1700 to 2300 VA
ColorGray
Country of OriginCN
Dimensions1-3/8 in Dia x 4 in H
Environmental Conditions-40 to 158 deg F Operating Temperature
Frequency Rating50/60 Hz
ManufacturerIntermatic
MaterialPolycarbonate
Mounting TypeStem
Package TypeEACH
Sensitivity1 to 5 FC ON/3 to 15 FC OFF
Sensor TypeCadmium Sulfide
SeriesK400
Tungsten Rating15 A, 3100 to 4150 W
TypeThermal
Type / StyleThermal
Voltage Rating208 to 277 V AC
Applications
Dusk to Dawn Lighting Control Applications
Warranty
1 Year Limited
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Delay feature prevents unwanted OFF switching
- High strength, UV resistant plastic housing
- Swivel with 1/2 in-14 NPSM threaded stem
Specifications
Timing Range: Dusk On - Dawn OFF
