Intermatic K4021C

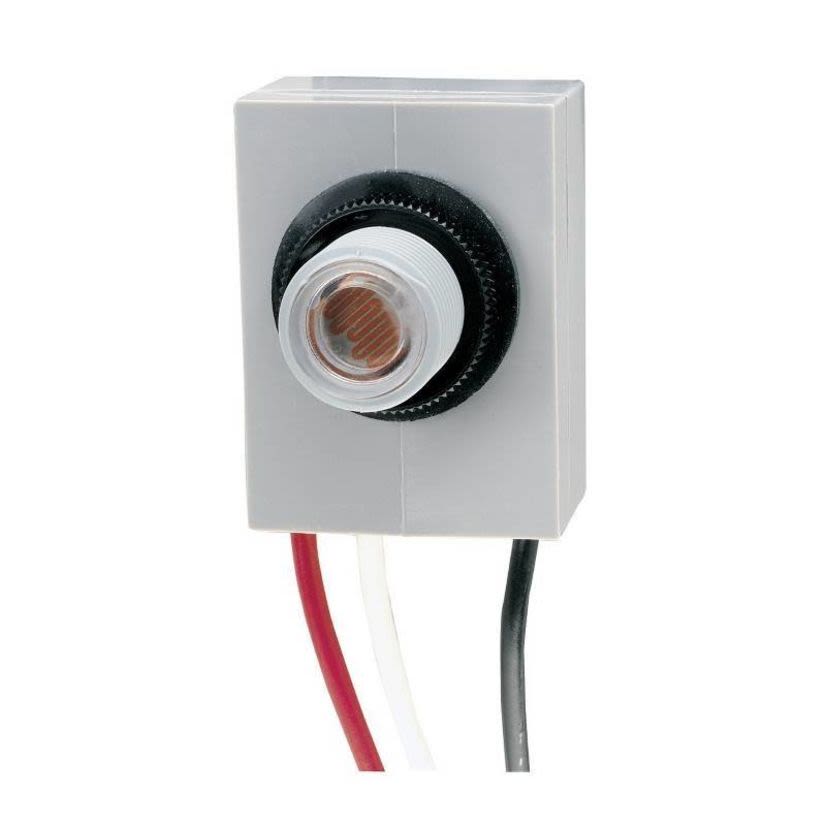

Intermatic K4021C Thermal Photocontrol, 120 V AC, Surface Mount
Intermatic K4021C
Intermatic K4021C Thermal Photocontrol, 120 V AC, Surface MountNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Intermatic Thermal Photocontrol, 120 V AC, 15 A, 50/60 Hz, 30 to 90 s, 18 AWG Wire, Photocontrol Sensor, Surface Mount, Gray, 23.8 mm W x 20.6 mm D x 46 mm H
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGray
Country of OriginMX
Dimensions23.8 mm W x 20.6 mm D x 46 mm H
Environmental ConditionsIndoor/Outdoor/Raintight
Frequency Rating50/60 Hz
ManufacturerIntermatic
Mounting TypeFixed
Package TypeEACH
Sensitivity1-5 FC ON, 3-15 FC OFF
Sensor TypePhotocontrol
Type / StyleThermal Type Photo Cell
Voltage Rating120 V AC
Applications
For Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway and Landscape Lighting
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
- Delay feature prevents unwanted OFF switching
- 3/8 in-18 NPSM, 3/4 in long stem with locking nut and washer gasket
Specifications
Timing Range: 30 to 90 s
