RAB STL200W

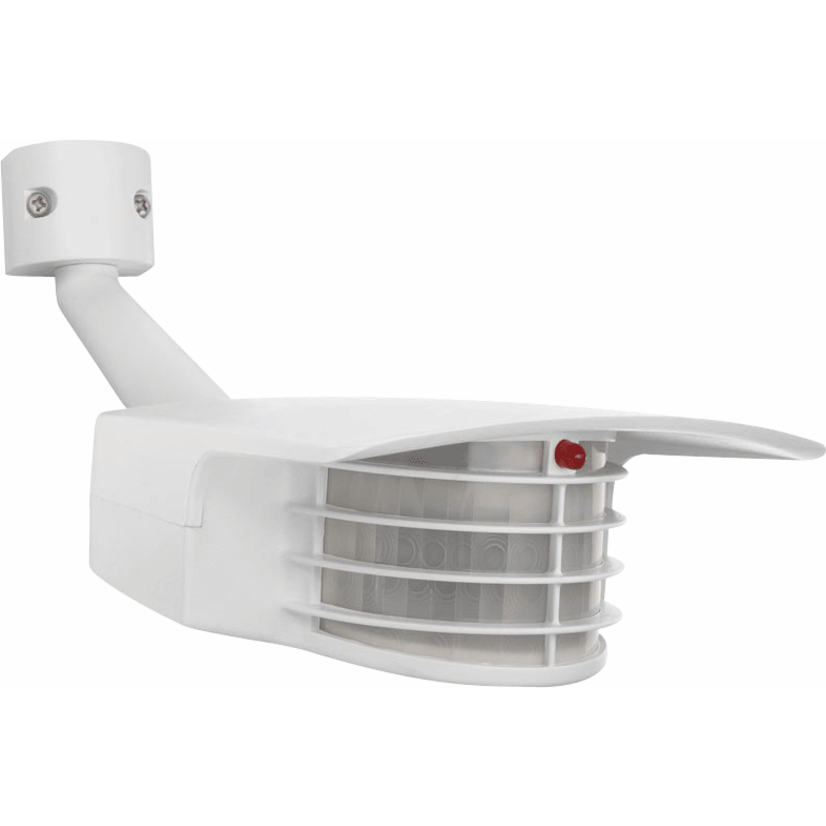

RAB Lighting STL200W Non-Fixture Stealth Sensor, 120 V AC, Photoelectric Sensor, 200 deg Viewing, Fastened Mount
RAB STL200W
RAB Lighting STL200W Non-Fixture Stealth Sensor, 120 V AC, Photoelectric Sensor, 200 deg Viewing, Fastened MountNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
RAB Lighting Stealth Sensor, Non-Fixture, 120 V AC, 8 A, 1000 W Power, Photoelectric Sensor, 200 deg Viewing, 5 s to 12 min Time Delay, Incandescent Lamp, 60 Hz Response, Fastened Mounting, Polycarbonate, White, 3-1/2 in H x 5 in W x 5 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorWhite
Country of OriginMY
CoverageWhite
Dimensions3-1/2 in H x 5 in W x 5 in D
Lamp TypeIncandescent
ManufacturerRAB Lighting Inc.
MaterialPolycarbonate
Mounting TypeFixture
Package TypeEACH
Power Rating1000 W
Response Frequency60 Hz
Sensor TypePhotoelectric
Time Delay5 s to 12 min
TypeNon-Fixture
Type / StyleNon-Fixture
Viewing Angle200 deg
Voltage Rating120 V AC
Documents
Applications
Wet Locations and Indoor/Outdoor Applications
Warranty
10 years
Features
- Temperature compensation
- Radio frequency immunity
- LED detection and "on guard" indicator
- Color matched vandal-resistant lens and grill
- Protected manual override with auto-reset
- Can be wired in parallel
- Shows when sensor is detecting in daytime and glows red at night for "on guard" deterrence LED detection indicator
- Dark lens with bronze units, white lens with white units color matched lens
- Withstands up to 6000 VAC
- Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
- Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- Adjustable from 100 to 30% detector sensitivity
- Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
- Keeps sensing pattern level for fast, error free installation horizontal lock, no tool joints
- Precision die cast aluminum 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers
