Leviton RS110-10W

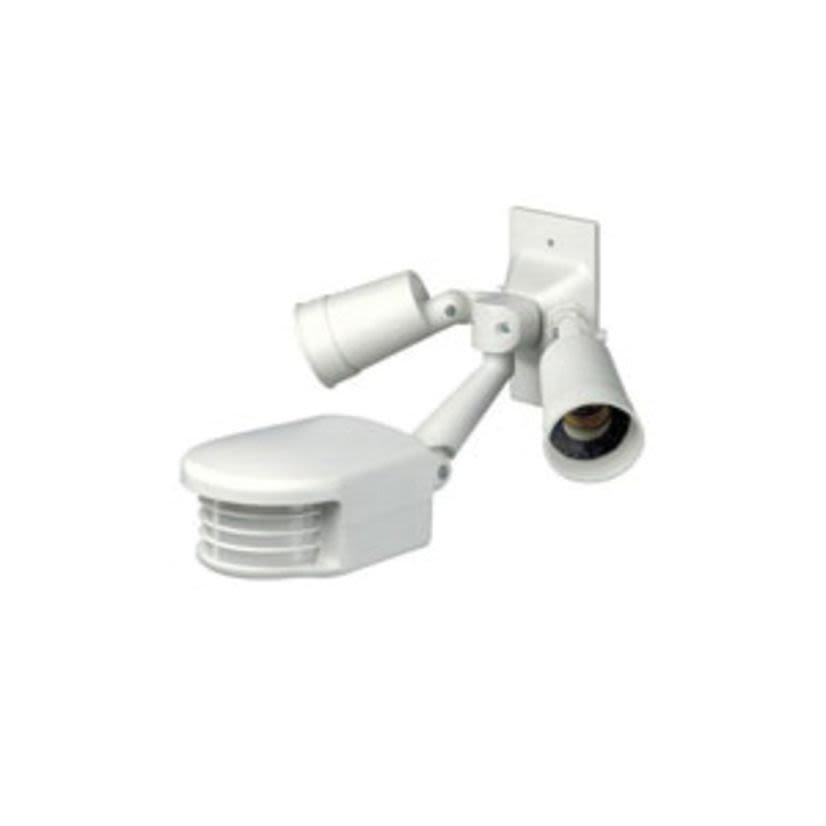

Leviton RS110-10W Occupancy Sensor, 120 VAC, PIR Sensor, 2500 sq-ft Coverage, 110 deg Viewing, Wall Mount
Leviton RS110-10W
Leviton RS110-10W Occupancy Sensor, 120 VAC, PIR Sensor, 2500 sq-ft Coverage, 110 deg Viewing, Wall MountNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #RS110-10W
Werner Part #1406759
UPC078477046241
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #RS110-10W
Werner Part #1406759
UPC078477046241
Product Description
Leviton Occupancy Sensor, 120 VAC, 500 W, PIR Sensor, 2500 sq-ft Coverage, 110 deg Viewing, 20 s to 15 min Delay, Fluorescent/Incandescent Lamp, 60 Hz Response, 1/2 in Threaded Nipple, Automatic On/Automatic Off Control Output, IP65, Wall Mount, -10 to 55 deg C, Plastic, White, 4.5 in H x 9.16 in W x 5.36 in D
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorWhite
Connection Type1/2 in Threaded Nipple
Control OutputAutomatic On/Automatic Off
Country of OriginCN
Coverage2500 sq-ft
Dimensions4.5 in H x 9.16 in W x 5.36 in D
Enclosure TypeIP65
Lamp TypeFluorescent/Incandescent
ManufacturerLeviton
MaterialPlastic
Mounting TypeWall
Package TypeEACH
Power Rating500 W
Response Frequency60 Hz
Sensor TypePIR
Temperature Rating-10 to 55 deg C
Time Delay20 s to 15 min
Viewing Angle110 deg
Voltage Rating120 V AC
Documents
Applications
Parking Areas, Storage Facilities, Warehouses, Loading Docks, Marinas, Garages, Walkways, Campus Grounds, Meat Lockers, Walk-In Refrigerators, Freezers, Outbuildings and Residential Applications
Warranty
5 Years Limited
Features
- Adjustable sensitivity and immunity to RFI signals to prevent false triggering
- Provides test and continuous modes, test mode simulates automatic operation with short delayed OFF time for easy adjustments, continuous mode enables manual override for constant "lights ON" operation (when used with standard ON/OFF switch)
- Water resistant housing for reliable, long term performance
- 1/2 in threaded nipple for use with standard NEMA weather proof fixture fitting
- When mounted at 10 ft H, the sensor has a range of 50 ft
- Impact resistance
